Products

Green Color Ptfe Guide Strip

PTFE guide strip plays a guiding role, in order to prevent the cylinder and piston rod wear, highly wear-resistant, low friction, heat-resistant, resistant to chemical corrosion, allow any foreign body is embedded in the guide wear ring, to prevent the particles on the cylinder and seal loss, can absorb vibration performance, and has excellent wear resistance and good dry dynamic characteristics.


Send Inquiry


Description

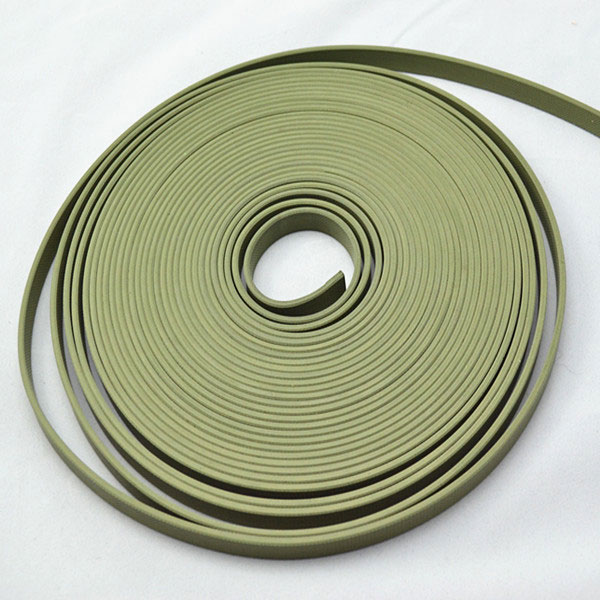

Green Color PTFE Guide Strip

Style KXT PG120 Green Color PTFE Guide Strip

Green Color PTFE guide strip owing to the low friction of fluorocarbon resin (PTFE), corrosion resistance, thermal stability and other excellent properties, has been widely used in friction, sealing parts, especially in the corrosive medium, and the problem is often difficult to be solved by general metal and other non-metallic materials. The elasticity and toughness of fluorocarbon resin to become excellent sealing material, especially when it is further through a variety of filling modification and some aromatic resin composite plastic alloy, can obtain the higher bearing capacity, thermal mechanical stability, abrasion resistance and the limit PV value.


Green Color PTFE guide strip plays a guiding role, in order to prevent the cylinder and piston rod wear, highly wear-resistant, low friction, heat resistant,

resistant to chemical corrosion, allow any foreign body is embedded in the guide wear ring, to prevent the particles on the cylinder and seal loss,

can absorb vibration performance, and has excellent wear resistance and good dry dynamic characteristics

  1. Material: PTFE + copper powder, phenolic cloth, pitch

The main features: guide the role and absorption of vibration performance, and has excellent wear

resistance and good performance of the dry line. Operating temperature: the general use of the

temperature range of -40 ~ 120℃



Advantages

 Excellent wear resistance and good performance of the dry line

 Low friction of fluorocarbon resin (PTFE)

 Obtain the higher bearing capacity

 Resistant to chemical corrosion

 Good corrosion resistance

Cost savings

 Longer using life- less time for eplacement new gaskets-save money

 Improved material utilization reduces waste



Application

 CNC machine, tools grinding machine and drilling machine

 Widely used in friction

 Corrosive medium

 Sealing parts., etc



Sizes:

Thickness

(mm)

Length

(mm)

Width

(mm)

Color

1

55

3.2-60

Black Brown
Golden
Green

1.5

35

2

27

2.5

22

3

18

4

13

5

10

6

8



Data sheet:

Testing Item

Unite item

Standards

Tensil strength

Mpa

≥15

Elongation at break

%

≥150

Standard denstity

g/cm3

2.4-3.25

Hardness Shore

≥70

Coefficient of friction

≤0.04

Amount of wear

mg

≤0.9
