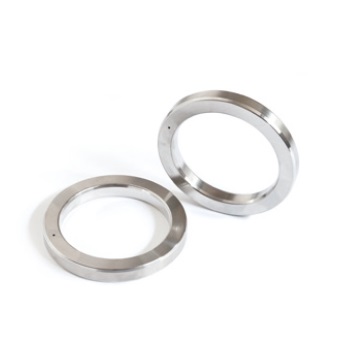

BX Ring Joint Gasket

> Although similar in style to the octagonal ring joint > BX series can only be used with 6BX flanges > BX rings for higher pressure rating starting at 5,000 lbs, and ending with 20,000 lbs. > Rings can not be re-used.


Send Inquiry


Description

BX ring type joint gasket refers to the metal gasket of BX-shaped section by processing metal materials. It is of pressure energized seal

in radial direction, one special kind of octagonal metal ring gaskets. It has good sealing as the contact between gasket and the ring joint

faces, especially the outside face, and is pressed tightly to keep good sealing performance.



BX ring type joint gasketis installed inside the ring joint groove of flange face. When the connecting bolt is fastened, it is compressed

in axis direction andispressed close to the upper and lower ring joint grooves, which result in the plastic deformation to create the seal.

After pressure is raised, ring gasket expandsin radial direction under the force of media pressure. The gasket sticks more tightly to the

bevel face of ring joint groove to formself-tightening. However, therise of media pressure will deform the flange and connecting bolt, it

will cause the relative separation between the sealingsurfaces, and the sealing ratio ofgaskets is reduced accordingly. BX ring type

joint gasket is one kind of pressure energized ring gaskets.



Note: When octagonal type is chosen, the material hardness of the pad should be 15~20HB lower than that of the flange face. It is

recommended the pad is not recycled.



Applicable standards:
ANSI B16.5-1973 、 JPI-75-15-70 、 GB 699 、 GB1220 、 JB755 、 HG20633-97



BX Ring Joint Gasket Drawings:



Main materials parameters:

Material

Maximum hardness BRINELL

Temperature( ℃ )

Abbreviations
marker

Brucellosis

Rockwell

Soft Iron

90

56

-60 500

D

Low Carbon Steel

120

68

-40~540

S

304SS

160

83

-250 540

304

304LSS

160

83

-250 540

304L

316SS

160

83

-200 815

316

316LSS

160

83

-200 815

316

321SS

160

83

-200 870

321

347SS

160

83

-200 870

347

410SS

170

86

-40 850

410

5Cr-0.5Mo

130


-29 650


Copper

80


-100 315


Aluminum

35


-200 425


Inconel 600

150


-100 1095


Incoloy 825

150


-100 1095


Monel 400

150


-100 760


Titanium

215


-200 540


Nickel 200 -

110


200 760


Hastelloy B2

230


-100 1095


Hastelloy C276

210


-100 1095

Why Choose US



1. Professional

We provide OEM, ODM of Ring joint gaskets for our customers worldwide, highly praised by our customers



2. High quality guarantee.

We strictly carry out ISO quality management system for all production process and raw material incoming.



3. High Quality Material Quarantee

All of our products are high quality material according ASTM



4.After service

24 Hours x 7 days after service



5. Factory Price with Samll MOQ
We promise factory low price with small MOQ.



6.Timely Delivery

For prototype tooling sample lead time 3~7 days

For production tooling lead time 10-15 days

For order 7-15 days according to quanti
