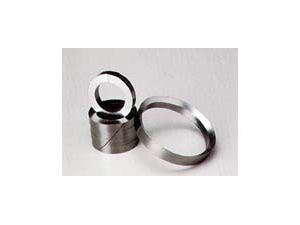

In the demanding world of industrial sealing, precision and reliability are non-negotiable. The Die-formed graphite ring represents a pinnacle of sealing technology, offering unparalleled performance in extreme environments. At Kaxite Sealing, we have perfected the manufacturing of these critical components, leveraging decades of expertise to deliver solutions that meet the highest international standards. Unlike traditional machined seals, die-formed rings are manufactured through a high-pressure molding process. This technique compresses high-purity graphite into a precise, net-shaped seal with superior structural integrity and consistency. The result is a component with exceptional sealing force, minimal creep relaxation, and excellent resistance to thermal and chemical attack. These rings are indispensable in applications where leakage is not an option, such as in chemical processing, power generation, oil and gas, and high-temperature furnace operations. Their ability to maintain a stable seal under fluctuating pressures and temperatures makes them a preferred choice for engineers and maintenance professionals worldwide.
Kaxite Sealing's die-formed graphite rings are engineered for excellence. Our proprietary process ensures each ring delivers consistent, reliable performance. The primary advantage lies in the die-forming process itself. By compressing graphite under immense pressure, we create a seal with a uniform density and a smooth, precise surface finish that requires no secondary machining. This homogeneous structure eliminates weak points and potential leak paths common in rings cut from larger blocks.
Choosing Kaxite Sealing means investing in a component that enhances system safety, reduces downtime, and lowers total cost of ownership through extended service intervals.
Selecting the correct die-formed graphite ring requires careful consideration of technical parameters. Kaxite Sealing offers a comprehensive range of standard sizes and custom configurations to fit your specific application. Our rings are manufactured from various grades of flexible graphite, each tailored for different operating conditions. Key parameters include internal diameter (ID), outer diameter (OD), cross-section, density, and any required impregnations or enhancements.
| Parameter | Description | Standard Range / Options | Measurement Standard |
|---|---|---|---|
| Material Grade | Base flexible graphite purity and flake size. | KP-01 (High Purity), KP-02 (Reinforced), KP-03 (Food/Pharma Grade) | ASTM D7219 |
| Density | Mass per unit volume, directly affecting sealing force and recovery. | 1.1 g/cm³ - 1.9 g/cm³ | ASTM D792 |
| Inner Diameter (ID) | Inside diameter of the ring. | 5 mm to 2000 mm (Custom sizes available) | ISO 286-2 |
| Outer Diameter (OD) | Outside diameter of the ring. | 10 mm to 2200 mm (Custom sizes available) | ISO 286-2 |
| Cross-Section | Radial width of the ring ( (OD-ID)/2 ). | 3 mm, 4.5 mm, 6 mm, 9 mm (Standard) | N/A |
| Temperature Range | Continuous operating temperature in air. | -200°C to +450°C (Oxidizing) / Up to 3000°C+ (Inert/Reducing) | ASTM E831 |
| Pressure Rating | Maximum recommended sealing pressure. | Up to 200 bar (2900 psi) for static seals | ASME B16.20 |
| pH Range | Compatibility with acidic/alkaline media. | 0 - 14 (Dependent on impregnation) | N/A |
| Impregnation | Treatment to enhance oxidation resistance or reduce permeability. | None, Phosphate, Resin, Metal (e.g., Inconel, Silver) | Customer Specification |
For critical applications, additional specifications such as compression-recovery curves, leakage rate (per ASTM F37), and oxidation loss data are available upon request from Kaxite Sealing's technical team.
The versatility of Kaxite Sealing die-formed graphite rings makes them suitable for a vast array of industrial sectors. Their primary function is to create a static seal between two flanges or mating surfaces, containing fluids or gases under high temperature and pressure.
Q: What is the main difference between a die-formed graphite ring and a stamped or machined ring?
A: The fundamental difference is in the manufacturing process and resulting microstructure. A die-formed ring is created by compressing pure graphite foil or powder in a precision mold under high tonnage. This creates a ring with uniform, high density throughout its entire cross-section. A stamped ring is cut from a sheet of compressed graphite, leaving cut edges that are more porous and prone to leakage. A machined ring is lathe-cut from a large block of molded graphite, which can introduce micro-fractures and density variations. Die-forming produces a structurally superior, net-shaped seal with optimal grain orientation for the best sealing performance.
Q: How do I select the correct density for my application?
A: Density selection is crucial. Higher density (e.g., 1.6 - 1.9 g/cm³) provides greater mechanical strength, higher sealing stress, and lower creep relaxation, making it ideal for high-pressure applications and harder flange surfaces. Lower density (e.g., 1.1 - 1.4 g/cm³) offers higher compressibility and conformability, which is better for sealing uneven or scratched flange faces and lower pressure applications. The Kaxite Sealing engineering team can recommend the optimal density based on your specific pressure, temperature, flange condition, and media.
Q: Are die-formed graphite rings reusable?
A: Generally, die-formed graphite rings are not designed to be reusable. During installation and initial operation, the ring undergoes plastic and elastic deformation to conform perfectly to the flange imperfections, creating the seal. Once compressed and thermally cycled, the ring's structure is set for that specific joint. Reusing it in another application or even re-torquing the same flange after disassembly is not recommended, as the recovery properties may be insufficient to create a new, reliable seal, posing a significant leakage risk.
Q: What is impregnation, and when is it necessary?
A: Impregnation is a process where the porous structure of the graphite is filled with another material. Common impregnants include inorganic salts (like phosphates) and various resins. The primary purpose is to significantly reduce the permeability of the graphite to gases and liquids and to improve its oxidation resistance in air at elevated temperatures (above 400°C). For example, a phosphate-impregnated Kaxite Sealing ring can operate continuously in air at up to 450°C, whereas non-impregnated graphite is limited to about 350-400°C in oxidizing environments. Impregnation is essential for sealing low-molecular-weight gases (helium, hydrogen) or for high-temperature service in air.
Q: How should die-formed graphite rings be stored and handled before installation?
A: Proper handling is key to maintaining performance. Store rings in their original packaging in a clean, dry, and temperature-controlled environment. Avoid exposure to moisture, dust, and direct sunlight. Handle rings with clean gloves to prevent contamination from skin oils. Do not bend, twist, or drop the rings, as graphite, while strong in compression, is brittle and can fracture under tensile or impact stress. Inspect the ring for any cracks or chips prior to installation.
Q: What are the recommended flange surface finish and flatness for optimal sealing with a die-formed ring?
A: For best results, flange sealing surfaces should have a smooth finish. A serrated spiral finish (like 30-60 µin Ra or 1.5-3.2 µm Ra) is often ideal as it provides enough "bite" for the graphite to grip without causing excessive wear. A mirror finish is not necessary and can sometimes be detrimental. Flange flatness is critical; typically, a flatness within 0.1 mm per 300 mm of diameter is recommended. Always clean the flange surfaces thoroughly with a non-greasy solvent to remove any old gasket material, paint, or debris before installing a new Kaxite Sealing ring.
Q: Can Kaxite Sealing provide custom-shaped rings, not just standard circles?
A: Absolutely. One of the significant advantages of the die-forming process is its ability to produce complex, net-shaped seals cost-effectively. Kaxite Sealing regularly manufactures oval, rectangular, obround, and other non-circular die-formed graphite rings. We can also produce rings with custom cross-sections, holes, or tabs. Providing a detailed drawing or sample allows our engineering team to design and produce a mold for your unique application requirements.
Kaxite Sealing stands as a leader in advanced sealing solutions, with a focused commitment to quality, innovation, and customer support. Our die-formed graphite rings are the product of rigorous R&D and state-of-the-art manufacturing facilities. We control the entire production process, from sourcing the highest purity raw graphite to final quality inspection, ensuring traceability and consistency in every batch. Our technical support team, comprised of seasoned engineers, works directly with clients to analyze application challenges and recommend the optimal sealing solution, not just a standard product. We understand that downtime is costly, and a seal failure can have serious safety implications. Therefore, we build reliability into every Kaxite Sealing component. With certifications compliant with international standards and a global distribution network, we provide not just a product, but a partnership for ensuring the integrity and efficiency of your industrial operations.
