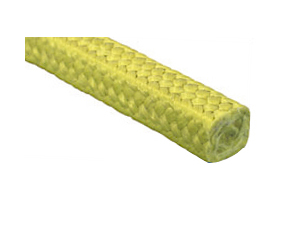

Introduction to Aramid Fiber Packing
In the demanding world of industrial sealing, reliability and performance under extreme conditions are non-negotiable. Among the advanced sealing solutions available, Aramid Fiber Packing stands out as a superior choice for a wide range of challenging applications. At Kaxite Sealing, we specialize in engineering high-performance sealing products, and our aramid fiber braided packing is at the forefront of this technology. This material, renowned for its exceptional strength-to-weight ratio and thermal stability, is engineered to provide long-lasting, leak-free service in environments where conventional packings fail. This comprehensive guide delves into the properties, applications, specifications, and benefits of our premium Aramid Fiber Packing, providing you with the detailed information necessary to make an informed decision for your operational needs.
What is Aramid Fiber?
Aramid fiber is a class of synthetic polymers characterized by long, rigid molecular chains that provide extraordinary tensile strength, thermal resistance, and dimensional stability. The most well-known commercial variants are para-aramid fibers like Kevlar® and meta-aramid fibers like Nomex®. When processed into braided packing, these fibers create a robust, flexible seal capable of withstanding high pressures, elevated temperatures, and aggressive media. Unlike asbestos, which it often replaces, aramid fiber is inherently non-carcinogenic and offers a significantly better environmental and safety profile. Kaxite Sealing utilizes high-grade aramid fibers, combined with advanced lubricants and proprietary braiding techniques, to produce packing that delivers maximum service life and reliability.
Key Product Parameters & Specifications
Understanding the technical specifications of Aramid Fiber Packing is crucial for proper selection and application. Below are the detailed parameters that define Kaxite Sealing's product line.
Material Composition & Properties
- Base Fiber: High-tenacity, continuous filament para-aramid yarn.
- Lubrication/Impregnation: PTFE (Polytetrafluoroethylene) dispersion and/or high-temperature grease. Some grades include graphite or molybdenum disulfide.
- Braid Construction: Interbraided (core-less) or jacketed styles, precision-braided for uniform density and flexibility.
- Color: Typically golden yellow, but can vary with specific lubricant blends.
- Specific Gravity: Approximately 1.4 - 1.45 g/cm³.
- pH Range: Stable in most media from pH 2 to pH 12.
Performance Data Table
| Parameter | Value / Range | Test Standard / Notes |
|---|---|---|
| Temperature Range | -100°C to +300°C (-148°F to +572°F) | Continuous operation; short-term peaks up to 350°C (662°F) possible. |
| Pressure Range | Up to 25 MPa (3600 psi) | Dependent on shaft speed and size; for rotating equipment. |
| Shaft Speed | Up to 25 m/s (82 ft/s) | Suitable for high-speed pump and mixer applications. |
| Tensile Strength | > 3000 MPa | Exceptional strength prevents extrusion and blow-out. |
| Thermal Conductivity | Low (approx. 0.04 W/m·K) | Provides good insulation properties. |
| Chemical Resistance | Excellent to Good | Resistant to most solvents, fuels, oils, and steam. Not recommended for strong acids and bases at high temperatures. |
| Compression Recovery | > 85% | Maintains seal load over time, reducing need for frequent adjustment. |
Available Sizes & Packaging
| Cross-Section (Square) | Standard Spool Length | Packaging Options |
|---|---|---|
| 3mm x 3mm (1/8") | 50 meters (164 feet) | Plastic spool, boxed |
| 5mm x 5mm (3/16") | 30 meters (98 feet) | Plastic spool, boxed |
| 6mm x 6mm (1/4") | 25 meters (82 feet) | Plastic spool or coil |
| 8mm x 8mm (5/16") | 20 meters (66 feet) | Plastic spool or coil |
| 10mm x 10mm (3/8") | 15 meters (49 feet) | Coil, polybagged |
| 13mm x 13mm (1/2") | 10 meters (33 feet) | Coil, polybagged |
| Custom sizes available upon request. | Contact Kaxite Sealing for specific requirements. | |
Primary Applications & Industries
Kaxite Sealing's Aramid Fiber Packing is a versatile solution designed for severe-duty service across multiple sectors. Its unique balance of properties makes it ideal for:
- Chemical Processing: Pumps and valves handling hydrocarbons, solvents, alkalis, and mild acids at elevated temperatures.
- Power Generation: Boiler feedwater pumps, steam turbine glands, and other high-temperature steam services.
- Oil & Gas: Refinery pumps, offshore platform equipment, and pipeline valves dealing with crude oil, diesel, and LNG.
- Pulp & Paper: Stock and black liquor pumps where abrasion and temperature are concerns.
- Marine & Shipbuilding: Stern tube seals, pump seals, and general valve packing in marine environments.
- General Industrial: Mixers, agitators, and other rotating equipment in manufacturing plants.
Frequently Asked Questions (FAQ)
General & Selection
Q: What are the main advantages of Aramid Fiber Packing over traditional graphite or flax packing?
A: Aramid packing offers several key advantages: superior tensile strength, which prevents extrusion in high-pressure applications; excellent resistance to abrasion, extending service life; high temperature capability up to 300°C continuous; and it is non-abrasive to shaft or sleeve surfaces, unlike some carbon-based packings. It also requires less maintenance and adjustment over time due to its excellent recovery properties.
Q: How do I select the correct size and style of aramid packing for my pump or valve?
A: Selection depends on the gland or stuffing box dimensions. The packing cross-section should be approximately 1/8th of the shaft diameter or the radial clearance of the stuffing box. For rotating shafts, an interbraided style is common for flexibility. For reciprocating or valve stems, a denser jacketed style might be preferred. Consulting Kaxite Sealing's technical datasheets or contacting our engineering support team with your equipment model and operating conditions is recommended for optimal selection.
Q: Can Kaxite Aramid Packing be used for food-grade or potable water applications?
A: Our standard aramid packing with PTFE lubrication is not specifically certified for food contact. However, we can supply special grades manufactured with FDA-listed ingredients for applications requiring compliance with food, pharmaceutical, or drinking water regulations. Please inquire about our specialized compliant formulations.
Installation & Operation
Q: What is the proper installation procedure for braided aramid packing?
A: Correct installation is critical for performance. Clean the stuffing box thoroughly. Use rings cut precisely on a mandrel or with a sharp knife—avoid fraying. Stagger joint positions by 90 degrees or more for each ring. Use a proper installation tool to seat each ring gently without hammering. For pumps, follow a "bottom-up" tightening sequence during initial startup: tighten gland nuts finger-tight, run the pump for a brief break-in period, then adjust until a slight leakage (a few drops per minute) is observed for cooling and lubrication. Final adjustment to near-zero leakage can be made after 24-48 hours of operation.
Q: What is the recommended break-in procedure?
A: A controlled break-in period allows the packing to adapt and form an effective seal. After installation, run the equipment at low pressure if possible. Adjust the gland follower evenly to allow a minimal amount of leakage (coolant) for the first few hours. Gradually tighten the gland in small increments over the next several operating cycles (e.g., every 30 minutes) until the desired leak rate is achieved. Rushing this process by overtightening initially can cause excessive heat, shaft wear, and premature packing failure.
Q: How do I know when the packing needs to be replaced?
A: Indicators include a persistent increase in leakage that cannot be controlled by gland adjustment, excessive heat generation at the stuffing box, a noticeable increase in power consumption of the pump or motor, or visible physical degradation of the packing material (e.g., severe hardening, cracking, or powdering). Regular maintenance checks should monitor these parameters.
Technical & Compatibility
Q: What are the chemical limitations of aramid fiber packing?
A: While aramid has excellent resistance to many organic solvents, oils, and steam, it has limited resistance to strong mineral acids (e.g., sulfuric, hydrochloric) and strong caustics (e.g., sodium hydroxide) at high concentrations and temperatures. Prolonged exposure to UV light can also cause degradation. For such aggressive chemical services, consult Kaxite Sealing for alternative materials like PTFE or flexible graphite-based packings.
Q: Is this packing suitable for high-speed centrifugal pumps?
A: Yes, Kaxite Sealing's aramid packing, especially grades with advanced PTFE and graphite lubrication, is specifically engineered for high-speed applications. Its low coefficient of friction, high strength, and excellent heat dissipation characteristics make it a reliable choice for centrifugal pumps with shaft speeds up to 25 m/s, provided it is installed and maintained correctly.
Q: Does the packing require external flushing or cooling?
A: In most standard applications with temperatures below 200°C and compatible fluids, external flushing is not mandatory as the packed-off fluid provides sufficient lubrication. However, for very high-temperature services, abrasive slurries, or when packing off dry gases, a lantern ring with a clean flush (compatible with the process) is highly recommended to provide cooling, lubrication, and to prevent solids buildup. Our technical team can advise on flush plans and lantern ring placement.
Why Choose Kaxite Sealing for Your Aramid Packing Needs?
Kaxite Sealing has built its reputation on precision engineering, consistent quality, and deep technical expertise in fluid sealing technology. Our Aramid Fiber Packing is not just a commodity product; it is the result of rigorous R&D, stringent quality control, and an understanding of real-world industrial challenges. We source only premium-grade raw materials and employ state-of-the-art braiding machinery to ensure every meter of packing meets the highest standards for density, consistency, and performance. Furthermore, our global customer support network and engineering services are available to assist with product selection, installation guidance, and troubleshooting, ensuring you achieve the maximum value and operational uptime from your investment. Trust Kaxite Sealing to provide the robust, reliable sealing solution your critical applications demand.
