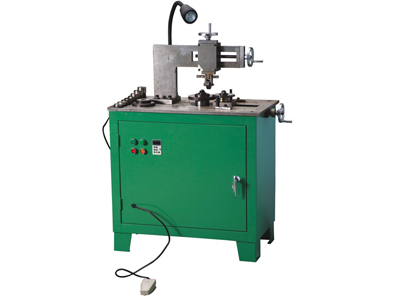

In the demanding world of industrial sealing, where extreme pressures, aggressive chemicals, and elevated temperatures are the norm, standard gaskets often fall short. This is where Machine for Double Jacketed Gaskets become the cornerstone of reliable production. At Kaxite Sealing, we have dedicated decades to engineering and perfecting machinery that produces the highest quality double jacketed gaskets—critical components for flange connections in pipelines, reactors, and vessels across the chemical, oil & gas, pharmaceutical, and food processing industries. Our machines are not just equipment; they are integrated solutions designed for precision, durability, and unmatched efficiency, ensuring your sealing products meet the most stringent international standards.
A double jacketed gasket consists of a soft, compressible filler material (like PTFE, graphite, or ceramic) fully enclosed within a metallic jacket (typically stainless steel, carbon steel, or exotic alloys). This construction combines the sealing resilience of the filler with the structural strength and blow-out resistance of the metal jacket. Manufacturing such a component requires machinery capable of precise forming, consistent compression, and flawless seam integrity. Kaxite Sealing's machines are built to master these exacting processes, delivering gaskets that ensure leak-free performance in the most critical applications.
Our machinery line is engineered with a focus on robust performance, user-centric operation, and adaptable manufacturing capabilities. Below are the detailed parameters that define our premier models.
| Machine Model | Max Gasket OD (mm) | Min Gasket OD (mm) | Typical Cycle Time* | Jacket Thickness Range (mm) | Filler Material Compatibility |
|---|---|---|---|---|---|
| KX-DJG-300 | 300 | 25 | 45-90 seconds | 0.4 - 1.0 | PTFE, Compressed Non-Asbestos, Flexible Graphite |
| KX-DJG-600 | 600 | 50 | 90-180 seconds | 0.5 - 1.2 | Graphite, Ceramic Fiber, PTFE, Mica |
| KX-DJG-1200 | 1200 | 100 | 3-5 minutes | 0.6 - 1.5 | All standard fillers, including specialized elastomeric cores. |
*Cycle time varies based on diameter, jacket material, and seam complexity.
Q: What are the primary advantages of using a dedicated machine for double jacketed gaskets over manual fabrication?
A: Manual fabrication is inconsistent, labor-intensive, and prone to human error, which can lead to gasket failure. A dedicated machine from Kaxite Sealing ensures repeatable precision in the forming and seaming process, resulting in uniform gasket density and optimal seam integrity. This dramatically increases production speed, reduces material waste, and guarantees every gasket meets the required dimensional and performance specifications, enhancing overall safety and reliability in end-use applications.
Q: How does the Kaxite Sealing machine handle different metal jacket materials, like stainless steel 316 or Inconel?
A: Our machines are built with versatility in mind. The servo-driven forming system allows for precise adjustment of rotational speed and forming pressure, which can be saved as preset programs for different materials. The tooling is hardened and can be specified for abrasion-resistant coatings to handle harder alloys like Inconel. The key is controlling the work-hardening characteristics of the metal during the forming fold, which our machines manage through programmable, multi-stage forming sequences.
Q: Can the machine produce gaskets to non-standard or custom profiles?
A: Absolutely. While standard oval and round cross-sections are common, Kaxite Sealing machines offer programmable tooling paths. With our advanced control system, operators can input custom dimensions and profiles for specialized gasket designs, such as those with tabs, kammprofile jackets, or unusual geometries. Our engineering team provides support for tooling design to accommodate these unique requirements.
Q: What is the importance of the seam integrity system, and how is it verified?
A: The seam is the most critical potential failure point in a double jacketed gasket. A weak or uneven seam can lead to filler extrusion under pressure. Our machines incorporate a multi-stage seaming process with calibrated pressure rollers. The optional integrated laser scanner measures the seam height and consistency in real-time, comparing it to the programmed tolerance. This data is logged, providing a verifiable quality record for each gasket produced.
Q: What kind of training and after-sales support does Kaxite Sealing provide?
A: We provide comprehensive support throughout the machine's lifecycle. This includes detailed on-site installation and commissioning, thorough operator and maintenance training, and a complete digital manual. Our after-sales support features a global network of technical specialists, readily available spare parts, and remote diagnostics via a secure connection. We ensure your team is fully confident in operating and maintaining the equipment for maximum uptime.
Q: How does this machinery integrate into an automated production line?
A: Kaxite Sealing machines are designed for Industry 4.0 readiness. They come with standard communication protocols (e.g., Ethernet/IP, Modbus TCP) for seamless integration with upstream material handling systems and downstream quality control or packaging stations. Automated jacket feeding systems and robotic gasket unloading can be added to create a fully automated, lights-out manufacturing cell for high-volume production.
The production of a double jacketed gasket is a metallurgical and mechanical challenge. It requires forming a metal jacket without creating micro-fractures, filling it uniformly without voids, and closing it with a seam that is as strong as the parent material. Kaxite Sealing machines address each of these challenges with engineered solutions. The heart of the machine is its forming head, which utilizes a proprietary progressive roll-forming technique that gently works the metal, preventing excessive stress and thinning. The filler compression station ensures the core material is evenly distributed at the correct density before the final seam is closed. Every subsystem, from the hydraulic power unit to the electrical cabinet, is sourced from premium, globally recognized components to ensure reliability and ease of maintenance. This commitment to engineering excellence translates directly into the performance of the gaskets you produce, giving your customers confidence in the integrity of their critical sealing applications.
