What is Graphite Packing?

Graphite Packing is a specialized sealing material engineered for extreme conditions where conventional packings fail. Composed primarily of high-purity flexible graphite, it is designed to create a reliable, long-lasting seal in demanding applications involving high temperatures, aggressive chemicals, and high-pressure steam. Its unique structure of interlocking graphite crystals provides exceptional thermal conductivity, chemical inertness, and self-lubricating properties, making it an indispensable solution for rotating and reciprocating equipment across industries like chemical processing, power generation, and refining. At Kaxite Sealing, we manufacture graphite packing to the highest standards, ensuring performance and durability that set the benchmark for the industry.

Key Features & Benefits of Kaxite Sealing Graphite Packing

Choosing the right sealing material is critical for operational safety and efficiency. Kaxite Sealing's graphite packing offers a superior combination of features that translate into tangible benefits for your operations.

• Exceptional Temperature Resistance: Capable of performing continuously from cryogenic temperatures up to 3000°F (1650°C) in inert atmospheres and up to 850°F (454°C) in oxidizing environments. This prevents packing degradation and failure under thermal cycling.
• Superior Chemical Inertness: Resists a wide range of aggressive media, including strong acids, alkalis, solvents, and hydrocarbons, ensuring seal integrity in corrosive process streams.
• Excellent Self-Lubrication: The layered structure of graphite provides inherent lubricity, reducing friction and wear on valve stems and pump shafts, which extends equipment life and lowers maintenance costs.
• High Thermal Conductivity: Rapidly dissipates heat away from the shaft or stem, preventing localized overheating and potential damage to both the packing and the equipment.
• Flexibility and Conformability: Easily conforms to irregular surfaces and gland spaces, creating a tight, leak-free seal even on slightly worn equipment.
• Low Permeability: The compressed graphite flakes form a dense, impermeable barrier effective against liquids and gases, including hard-to-seal media like steam and hydrogen.
• Long Service Life & Reduced Maintenance: The combination of durability and resistance to common failure modes results in fewer repacking events, reduced downtime, and lower total cost of ownership.

Technical Specifications & Product Parameters

To ensure proper selection and application, it is essential to understand the detailed specifications of graphite packing. Below are the standard parameters for Kaxite Sealing's premium graphite packing products.

Standard Physical & Mechanical Properties

Chemical Compatibility Guide (Partial List)

*Consult Kaxite Sealing engineering for specific molten salt applications.

Standard Product Range

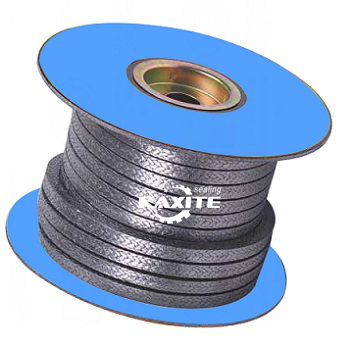

• Formats: Coil/Spool Packing, Die-Formed Rings, Braided Graphite (with or without Inconel wire reinforcement), Laminate Sheets.
• Standard Sizes (Square Cross-Section): 1/8", 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1".
• Standard Sizes (Round Cross-Section): 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 16mm, 20mm.
• Reinforcements (Optional): 304/316 Stainless Steel, Inconel 600/601, Monel wire insert or foil for enhanced mechanical strength in high-pressure or abrasive services.
• Additives (Optional): Anti-oxidant inhibitors for extended life in continuous oxidizing atmospheres above 450°C.

Graphite Packing FAQ (Frequently Asked Questions)

Q: What is the primary difference between graphite packing and traditional asbestos or PTFE-based packings?

A: The core difference lies in the material's inherent properties. Traditional packings like asbestos have limited temperature resistance and health hazards, while PTFE softens at high temperatures. Graphite packing offers superior, consistent performance from cryogenic to extremely high temperatures (3000°F/1650°C in inert gases), with excellent chemical resistance and self-lubrication. It doesn't bake onto shafts, making removal easier during maintenance. Kaxite Sealing graphite packing provides a longer-lasting, more reliable seal in demanding applications, reducing total lifecycle costs.

Q: Can graphite packing be used on high-speed pump shafts?

A: Yes, but selection and installation are critical. For high-speed applications, a braided graphite packing reinforced with Inconel or stainless steel wire is often recommended from Kaxite Sealing. This provides greater structural integrity and resistance to extrusion under centrifugal forces. Proper gland design, cooling, and lubrication (sometimes via a flush) are essential to manage frictional heat. It is crucial to follow the manufacturer's tightening procedures to achieve the correct running leak rate without overheating the shaft.

Q: How do I install graphite packing rings correctly?

A: Correct installation ensures optimal performance. Clean the stuffing box and shaft thoroughly. Use a sizing mandrel to cut rings precisely; never cut over the shaft. Stagger the ring joints by 90 degrees or more. Install rings one at a time, using a split installation tool to seat each ring firmly and evenly without twisting. Follow the initial tightening torque specified by Kaxite Sealing. After initial startup and a short run-in period, re-tighten the gland follower to compensate for initial compaction. Avoid over-tightening, as this generates excessive heat and wear.

Q: Is graphite packing suitable for oxygen service?

A: Standard flexible graphite packing is generally NOT recommended for pure oxygen, enriched oxygen, or strong oxidizing agents (like chlorine trifluoride) due to the risk of rapid oxidation and combustion under high pressure and temperature. Special, passivated grades treated with anti-oxidant inhibitors may be considered for specific, controlled oxygen services, but this requires careful review. Always consult with Kaxite Sealing's application engineers for any oxygen or strong oxidizer application to assess suitability and specify the correct, safe material.

Q: What causes graphite packing to fail prematurely, and how can it be prevented?

A: Common causes of premature failure include improper installation (over-tightening, under-tightening, twisted rings), incorrect material selection for the chemical or temperature service, abrasive media without proper flush, and excessive shaft runout or damage. Prevention starts with selecting the correct Kaxite Sealing packing grade for the service conditions. Ensure equipment (shaft, stuffing box) is within manufacturer tolerances. Follow precise installation procedures. Implement appropriate cooling or flushing for hot or abrasive services. A planned maintenance schedule to check and adjust packing is also key to maximizing service life.

Q: Does Kaxite Sealing offer graphite packing in custom sizes or composite forms?

A: Absolutely. While we stock a wide range of standard sizes and styles, Kaxite Sealing specializes in engineering custom sealing solutions. We can manufacture graphite packing in non-standard cross-sections, large-diameter rings for specific valves or vessels, and composite structures incorporating other materials like PTFE, ceramic fibers, or specific metal foils to meet unique pressure, temperature, or chemical requirements. Contact our technical sales team with your application details for a custom quote.

Typical Applications for Kaxite Sealing Graphite Packing

The versatility and robustness of graphite packing make it suitable for a vast array of critical sealing challenges. Here are some of the most common industrial applications:

• Power Generation: Valve stem sealing in high-pressure/temperature steam lines, boiler feed pumps, soot blower valves, turbine bypass systems, and flue gas desulfurization units.
• Chemical & Petrochemical Processing: Reactor agitators, centrifugal and reciprocating pumps handling acids and alkalis, heat exchanger manways, expansion joints, and flanges in severe service.
• Oil & Gas Refining: Sealing in crude units, catalytic crackers, hydrocrackers, and reformer units for valves, pumps, and compressors handling hydrocarbons, hydrogen, and sour gases.
• Pulp & Paper Industry: Digester blow valves, black liquor recovery boiler valves, and pumps handling corrosive cooking liquors.
• Steel & Metal Production: Sealing for furnace valves, continuous casting equipment, and annealing lines where high temperatures are prevalent.
• Pharmaceutical & Food Processing: Sanitary applications using high-purity, FDA-compliant grades for steam sterilization (SIP) and clean-in-place (CIP) systems.
• General Industrial: Autoclaves, heat treatment furnaces, hot oil pumps, and any application where temperature exceeds the capability of organic packings.
