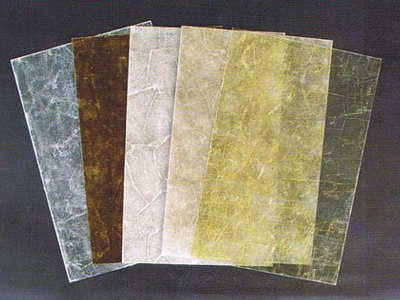

In the world of high-performance industrial materials, few substances are as versatile and reliable as mica. At its core, a Mica Sheet is a fabricated material produced from naturally occurring mica minerals, primarily muscovite or phlogopite. These sheets are engineered by reconstituting mica splittings with binders and then processing them under heat and pressure to create uniform, flexible, and incredibly durable insulating panels. This unique combination of natural mineral properties and advanced manufacturing makes mica sheets indispensable across a vast array of demanding applications, from aerospace and automotive to consumer electronics and heavy industrial equipment.
The inherent characteristics of mica—its exceptional dielectric strength, thermal stability, and chemical inertness—are preserved and enhanced in sheet form. This allows engineers and designers to specify a material that can withstand extreme temperatures, act as a superb electrical insulator, and provide a barrier against flames and corrosive environments. As industries push the boundaries of efficiency and miniaturization, the demand for reliable, high-temperature insulating materials like mica sheets continues to grow. Kaxite Sealing has positioned itself at the forefront of this field, specializing in the production of premium-grade mica sheets that meet and exceed the rigorous standards of modern engineering.
Selecting the correct mica sheet for a specific application requires a deep understanding of its technical parameters. Kaxite Sealing offers a comprehensive range of sheets tailored for diverse operational needs. Below is a detailed breakdown of the critical specifications.
| Property | Muscovite Sheet (Standard) | Phlogopite Sheet (High-Temp) | Reinforced Composite Sheet | Test Standard |
|---|---|---|---|---|
| Thickness Range | 0.1mm - 3.0mm | 0.2mm - 5.0mm | 0.5mm - 10.0mm | ASTM D374 |
| Density (g/cm³) | 1.8 - 2.2 | 2.0 - 2.4 | 2.2 - 2.8 | ASTM D792 |
| Max Operating Temp. | 600°C (1112°F) | 1000°C (1832°F) | 850°C (1562°F) | - |
| Dielectric Strength (kV/mm) | 25 - 35 | 20 - 30 | 15 - 25 | ASTM D149 |
| Tensile Strength (MPa) | 80 - 120 | 70 - 100 | 140 - 200 | ASTM D638 |
| Water Absorption (24h, %) | < 1.0 | < 0.8 | < 0.5 | ASTM D570 |
The data presented showcases the performance spectrum available. For instance, Phlogopite-based sheets from Kaxite Sealing offer superior heat resistance, making them ideal for furnace windows or high-temperature gaskets. Conversely, Muscovite sheets provide higher dielectric strength, perfect for electrical insulation in consumer appliances. The reinforced composite sheets, often backed with glass cloth or polyester film, offer enhanced mechanical strength for demanding structural applications.
This FAQ section addresses the most common technical and commercial inquiries regarding mica sheets, drawing on the expertise of Kaxite Sealing engineers.
Q: What is the fundamental difference between Muscovite and Phlogopite mica sheets?
A: The core difference lies in their chemical composition and resulting thermal properties. Muscovite (potassium aluminum silicate) is characterized by its high dielectric strength, clarity, and good thermal stability up to approximately 600°C. Phlogopite (potassium magnesium aluminum silicate) contains magnesium, giving it a darker amber color and significantly higher heat resistance, capable of continuous operation up to 1000°C. Choice depends on whether the primary requirement is superior electrical insulation (Muscovite) or extreme temperature endurance (Phlogopite).
Q: Can mica sheets be machined or fabricated after purchase?
A: Yes, one of the key advantages of mica sheets from Kaxite Sealing is their excellent machinability. They can be precisely cut, punched, stamped, drilled, or routed using standard workshop tools such as carbide-tipped blades, CNC routers, or laser cutters. For complex shapes, die-cutting is highly effective. It is recommended to use sharp tools and secure the sheet properly to prevent delamination or chipping at the edges during the fabrication process.
Q: How do mica sheets perform in terms of flame resistance and smoke generation?
A: Mica is an inherently non-combustible mineral. Sheets manufactured by Kaxite Sealing are classified as flame-retardant and typically achieve top ratings in flammability tests (e.g., UL94 V-0). They do not ignite, contribute to flame spread, or release significant toxic smoke when exposed to fire. This makes them a critical safety component in applications like electric vehicle battery packs, home heaters, and industrial furnaces.
Q: In what specific applications are mica sheets the preferred or only viable solution?
A: Mica sheets are often the material of choice in scenarios combining high temperature and electrical insulation needs. Key applications include: insulation plates in household appliances (toasters, hair dryers, microwave ovens), phase insulation in electric motors and generators, thermal and electrical barriers in battery systems (EVs, energy storage), gaskets and seals for high-temperature processes, viewing windows in industrial ovens/furnaces, and as a substrate for heating elements in various industrial and consumer products.
Q: How do I select the appropriate thickness for my application?
A: Thickness selection is primarily driven by three factors: required dielectric withstand voltage, mechanical strength needs, and thermal insulation performance. As a rule of thumb, higher voltages and the need for greater rigidity demand thicker sheets. For example, a 0.2mm sheet may suffice for low-voltage insulation in a small appliance, while busbar insulation in high-power equipment might require 2mm or more. Kaxite Sealing technical support team can provide detailed guidance based on your specific voltage, temperature, and mechanical load parameters.
Q: Are mica sheets resistant to chemicals and radiation?
A: Mica sheets exhibit excellent resistance to most acids, alkalis, solvents, oils, and corrosive gases. They are not affected by radiation, making them suitable for use in nuclear applications. However, resistance can vary slightly based on the binder used. Silicone-bonded sheets offer broad chemical resistance, while inorganic-bonded sheets provide the ultimate stability in harsh chemical and radiation environments. It's always advisable to consult the Kaxite Sealing chemical resistance chart for compatibility with specific media.
Q: What are the lead times and customization options available for Kaxite Sealing mica sheets?
A: Kaxite Sealing maintains an inventory of standard-grade sheets for quick turnaround. For custom requirements—such as specific thicknesses, sheet dimensions, reinforcement materials, or die-cut shapes—lead times vary based on complexity and order volume. We offer full customization, including slitting, sheeting, and precision die-cutting to your drawings. Providing detailed specifications and application details ensures we deliver the optimally configured product.
Q: How should mica sheets be stored and handled to ensure longevity?
A: Store sheets in a cool, dry environment away from direct sunlight and moisture. Keep them flat on a level surface or stored vertically in racks to prevent warping or bending. Although mica sheets are robust, avoid dropping heavy objects on them or creating sharp creases. When handling, clean gloves are recommended to prevent contamination from oils and dirt, which could affect performance in sensitive electrical applications.
The unique property set of mica sheets enables their use in a multitude of sectors. In the Electronics & Electrical industry, they serve as slot liners, phase insulators, and armature insulation in motors and generators, ensuring reliable operation under electrical stress. The Automotive & Aerospace sectors utilize them for battery insulation in electric and hybrid vehicles, as well as for thermal barriers in engine compartments and avionics.
Within Industrial Manufacturing, mica sheets are found as gaskets and seals in pumps and valves handling hot fluids, as insulation for heating elements in industrial ovens, and as protective layers in welding equipment. The Consumer Goods sector relies on them for safety and functionality in appliances like hair straighteners, space heaters, and toasters, where they separate high-temperature components from plastic housings. Furthermore, their use in Energy & Power Generation, including insulation for turbines and nuclear reactor components, underscores their critical role in infrastructure. The commitment of Kaxite Sealing to consistent quality and performance ensures that their mica sheets meet the precision and reliability demands of all these advanced applications.
