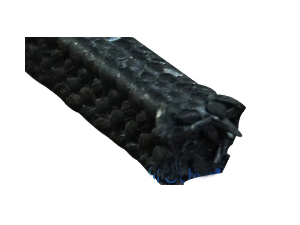

Carbon Fiber packing represents the pinnacle of sealing technology for demanding industrial applications. Engineered from high-modulus carbon fibers and treated with specialized lubricants and blockers, this advanced packing material delivers exceptional performance where other solutions fail. At Kaxite Sealing, we leverage over two decades of expertise to manufacture premium-grade carbon fiber packing designed to withstand extreme temperatures, aggressive chemicals, and high shaft speeds, ensuring maximum equipment uptime and operational safety.
### **Unmatched Material Composition & Properties**
The superior performance of Kaxite Sealing's carbon fiber packing stems from its precise engineering. It is not merely a braided cord but a sophisticated system of components working in unison.
**Core Components:**
* **High-Purity Carbon Fibers:** The primary reinforcement, offering exceptional tensile strength, thermal stability, and chemical inertness.
* **PTFE (Teflon®) Impregnation:** Uniformly integrated to provide inherent lubrication, reduce friction, and minimize shaft wear. This also enhances chemical resistance.
* **Specialized Anti-Extrusion Additives:** These agents prevent the packing from being forced into gland clearances under high pressure, maintaining seal integrity.
* **Corrosion Inhibitors:** Protective compounds that shield both the packing and the equipment shaft from corrosive media.
**Key Physical & Chemical Properties:**
* **Thermal Conductivity:** Excellent heat dissipation away from the shaft.
* **Low Coefficient of Friction:** Ensures smooth operation and low breakout torque.
* **Non-Abrasive:** Specially treated fibers protect costly shaft sleeves from scoring and damage.
* **Self-Lubricating:** PTFE content provides continuous lubrication, extending service life.
### **Technical Specifications & Performance Data**
For engineers and procurement specialists, precise data is crucial. Below are the standard specifications for Kaxite Sealing's Carbon Fiber Packing, Series CF-2000.
**Table 1: Standard Product Specifications**
| Property | Metric Value | Imperial Value | Test Standard |
| :--- | :--- | :--- | :--- |
| **Temperature Range** | -100°C to +320°C | -148°F to +608°F | ASTM E228 |
| **pH Range** | 0 - 14 | 0 - 14 | N/A |
| **Density** | 1.6 - 1.8 g/cm³ | 0.058 - 0.065 lb/in³ | ASTM D792 |
| **Tensile Strength** | > 220 MPa | > 32,000 psi | ASTM D2256 |
| **Thermal Conductivity** | 8 - 12 W/m·K | 55 - 83 BTU·in/(hr·ft²·°F) | ASTM E1225 |
| **Coefficient of Friction** | 0.08 - 0.12 | 0.08 - 0.12 | ASTM D1894 |
| **Chemical Compatibility** | Excellent resistance to acids, alkalis, solvents, hydrocarbons | Excellent resistance to acids, alkalis, solvents, hydrocarbons | N/A |
**Table 2: Recommended Application Parameters**
| Application Type | Pressure (Max) | Shaft Speed (Max) | Recommended Gland Load |
| :--- | :--- | :--- | :--- |
| **Pumps (Centrifugal, Reciprocating)** | 200 bar (2900 psi) | 25 m/s (5000 ft/min) | 40 - 60 N/mm² |
| **Valves (Stem Sealing)** | 350 bar (5075 psi) | 5 m/s (1000 ft/min) | 50 - 70 N/mm² |
| **Mixers & Agitators** | 100 bar (1450 psi) | 20 m/s (4000 ft/min) | 35 - 55 N/mm² |
| **Expansion Joints** | 150 bar (2175 psi) | N/A | 30 - 50 N/mm² |
### **Comprehensive Product Range & Configurations**
Kaxite Sealing offers a versatile range of carbon fiber packing to meet specific operational needs.
**Available Styles:**
1. **Square Braid (Style CF-2100):** The standard construction offering excellent balance of density, flexibility, and sealing force. Ideal for general pump and valve service.
2. **Braided-over-Core (Style CF-2200):** Features a resilient core for enhanced sealing in low-load applications and uneven gland spaces.
3. **Die-Formed Rings (Style CF-2300):** Precisely molded rings for consistent sizing, reducing installation time and ensuring perfect fit in split equipment or for maintenance kits.
4. **Anti-Pump Variant (Style CF-2400):** Incorporates a specialized braid angle to prevent the "pumping" effect in reciprocating applications, maintaining stable seal pressure.
**Standard Sizes:**
* **Cross-Section:** Available from 3mm (1/8") to 25mm (1") in standard increments.
* **Spool Length:** Typically supplied in 10-foot, 50-foot, or 100-foot continuous lengths. Die-formed rings are supplied in sets per gland box size.
* **Color Coding:** Standard black. Custom color threads (e.g., white, yellow) for PTFE impregnation are available for identification.
### **Frequently Asked Questions (FAQs)**
**Q: What are the primary advantages of carbon fiber packing over traditional aramid or graphite packing?**
**A:** Carbon fiber packing offers a unique combination of advantages: superior thermal conductivity for better heat dissipation, higher strength-to-weight ratio leading to less gland wear, and exceptional chemical resistance across a wider pH range. Unlike graphite, it maintains structural integrity in highly oxidizing environments, and unlike aramid, it can handle much higher temperatures and is more chemically inert.
**Q: Is carbon fiber packing abrasive to my equipment's shaft or sleeve?**
**A:** No, when properly manufactured. A common misconception is that carbon fibers are inherently abrasive. Kaxite Sealing's packing uses surface-treated, high-modulus fibers fully impregnated with PTFE. This process encapsulates the fibers, creating a smooth, self-lubricating seal face that is non-abrasive and actually protects the shaft from corrosion and wear.
**Q: How do I properly install and tighten carbon fiber packing rings?**
**A:** Correct installation is critical. Always clean the shaft and stuffing box. Use rings cut exactly to size on a mandrel—never wrap the packing around the shaft. Stagger ring joints by 90 degrees. Tighten the gland follower hand-tight only. Start the equipment and allow the packing to warm up for 10-15 minutes. Then, tighten the gland nuts gradually, one flat at a time, until a slight leakage (a few drops per minute) is observed. This "break-in" leakage will typically subside as the packing seats.
**Q: Can this packing be used in food, beverage, or pharmaceutical applications?**
**A:** Kaxite Sealing offers specific grades (Series CF-2500) that utilize FDA-listed and USP Class VI compliant PTFE impregnants and fibers. These grades are designed for sanitary applications where incidental contact is possible. Always specify your industry and media when inquiring.
**Q: What is the typical service life, and what are the signs that repacking is needed?**
**A:** Service life varies drastically based on service conditions—pressure, temperature, speed, and media. Under optimal conditions, life can exceed 18-24 months. Signs for replacement include a persistent increase in leakage beyond adjustable control, a noticeable increase in operating temperature at the gland, or excessive gland adjustment being required to maintain the seal.
**Q: How does Kaxite Sealing ensure quality and consistency?**
**A:** Every batch of Kaxite carbon fiber packing undergoes rigorous QA testing. We perform tensile strength analysis, density checks, thermal conductivity verification, and chemical immersion tests. Our manufacturing process is controlled to ensure consistent braid angle, PTFE content, and finish, guaranteeing you receive a reliable, high-performance product every time.
**Q: Can you supply custom sizes or configurations for unique applications?**
**A:** Absolutely. Kaxite Sealing specializes in engineered sealing solutions. We regularly produce custom cross-sections, large-diameter rings for turbines or custom machinery, and packing with specialized additives for unique chemical or thermal challenges. Contact our engineering team with your specifications.
### **Target Applications & Industry Solutions**
This material is engineered for severe service across numerous sectors:
* **Chemical & Petrochemical:** Sealing aggressive acids, alkalis, chlorinated solvents, and hydrocarbons in pumps, reactors, and valves.
* **Power Generation:** Main boiler feed pumps, high-temperature valves, flue gas desulfurization (FGD) systems, and turbine seals.
* **Oil & Gas:** Downhole tools, Christmas tree valves, high-pressure acid injection pumps, and offshore platform equipment.
* **Pulp & Paper:** Bleach plant mixers, black liquor pumps, and high-temperature drying rollers.
* **General Manufacturing:** High-temperature autoclaves, mixers for adhesives/resins, and hydraulic systems.
