In the realm of industrial manufacturing, quality assurance is paramount. A Test Machine is an essential apparatus designed to evaluate, validate, and ensure the performance, durability, and safety of components, materials, or finished products under controlled or simulated conditions. These machines apply specific stresses—such as tensile force, compression, torsion, fatigue, or pressure—to a test specimen to measure its physical properties and behavioral limits. From automotive parts and aerospace components to construction materials and consumer goods, test machines provide the critical data needed to prevent failures, comply with international standards, and build trust in a product's reliability. For industry leaders like Kaxite Sealing, employing advanced test machines is non-negotiable for verifying the integrity of sealing solutions that must perform in extreme environments.
Understanding the specifications of a Test Machine is crucial for selecting the right equipment for your application. Below is a detailed breakdown of the core parameters that define its capabilities.
| Component | Specification | Importance |
|---|---|---|
| Load Cell | Accuracy Class 0.5 or better (per ISO 7500-1/ASTM E4) | Measures the applied force. High accuracy ensures reliable and repeatable force data. |
| Displacement Transducer | Linear encoder or LVDT with resolution up to 0.1 µm | Measures crosshead or actuator movement. Essential for strain calculation and precise control. |
| Extensometer | Gauge lengths from 10mm to 100mm, strain accuracy ±1% | Directly measures specimen strain, providing the most accurate modulus (Young's) and yield strength data. |
| Controller | Digital, closed-loop servo controller with 32-bit processing | The brain of the machine. Manages control modes, data sampling, and safety interlocks in real-time. |
| Software | Windows-based with modules for ASTM, ISO, JIS, etc. | Defines test methods, analyzes results, generates compliant reports, and archives data for traceability. |
| Parameter | Typical Range / Description |
|---|---|
| Power Requirements | 400V, 3-phase, 50/60 Hz or 230V single-phase, depending on capacity. |
| Space Requirements (Footprint) | Varies from 0.5m² for table-top models to 5m² for large floor-standing systems. |
| Weight | From ~150 kg for benchtop units to over 5000 kg for high-capacity frames. |
| Environmental Operating Conditions | Temperature: 10°C to 40°C; Humidity: 20% to 80% non-condensing. |
| Safety Features | Emergency stop buttons, mechanical overload stops, software travel limits, protective guarding. |

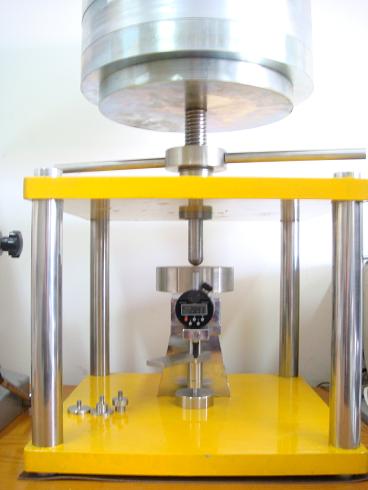

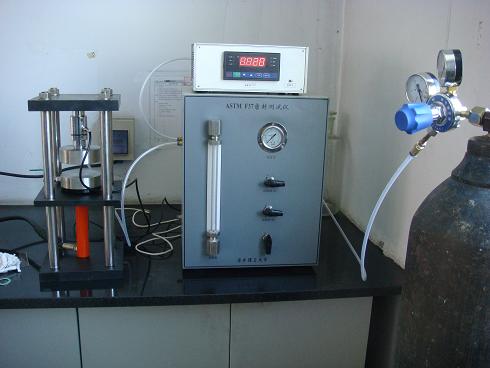

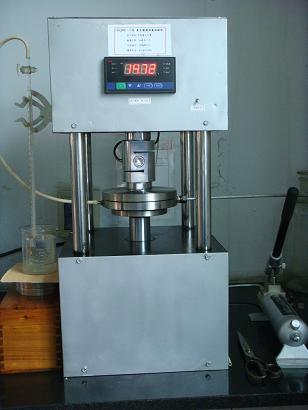

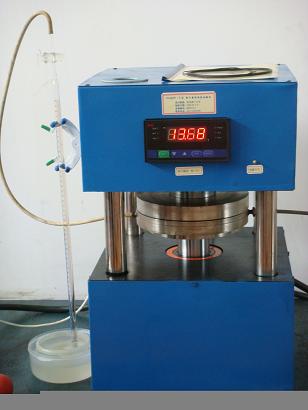

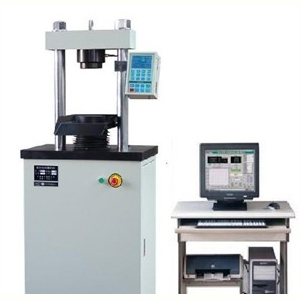

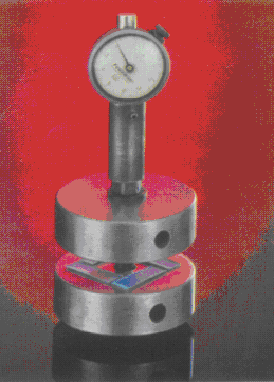

Test Machines are versatile tools used across a wide spectrum of industries. At Kaxite Sealing, our dedicated testing laboratories feature state-of-the-art machines to validate every seal and gasket we produce.
Q: What is the difference between a universal testing machine (UTM) and a dedicated test machine?
A: A Universal Testing Machine (UTM), or tensile tester, is a versatile frame that can perform tension, compression, flexure, and shear tests by using different fixtures and grips. A dedicated test machine is designed for one specific, often high-volume or complex, test. Examples include a burst tester for packaging, a fatigue tester for constant cyclic loading, or a hardness tester. UTMs offer flexibility for R&D and QC labs that test diverse materials, while dedicated machines maximize efficiency for a single, repetitive test procedure.
Q: How often should a test machine be calibrated, and why is it necessary?
A: Calibration should be performed at least annually, or more frequently if the machine is used heavily, subjected to environmental changes, or after any mechanical impact. Regular calibration is a mandatory requirement of quality standards like ISO/IEC 17025. It involves comparing the machine's force, displacement, and strain measurements against traceable reference standards (e.g., certified load cells, gauge blocks). This process identifies and corrects for measurement drift, ensuring all test data is accurate, reliable, and legally defensible. Kaxite Sealing maintains a strict calibration schedule for all its test equipment to uphold data integrity.
Q: What factors are most important when selecting a test machine for a quality control laboratory?
A: Key selection criteria include: 1) Force Capacity: Choose a machine where your typical test forces fall between 20% and 80% of its maximum capacity for optimal accuracy. 2) Required Standards: Ensure the machine and its software can perform tests according to the specific ASTM, ISO, or other standards you must follow. 3) Grips and Fixtures: The right grips (e.g., wedge, pneumatic, shear) are essential for proper specimen holding and avoiding premature failure at the grip. 4) Ease of Use & Training: Intuitive software and reliable hardware reduce operator error and training time. 5) Service and Support: Consider the manufacturer's reputation for technical support, spare parts availability, and local service engineers.
Q: Can a single test machine handle both soft materials like rubber and hard materials like steel?
A: Yes, a high-quality universal test machine can test both, but it requires proper configuration. The critical elements are: a load cell with an appropriate capacity range (you may need a dual-range cell or multiple cells), and different grips. Rubber requires non-marking, self-tightening grips to prevent slippage, while steel needs serrated or threaded grips to bite into the hard surface. The machine's control system must also be sensitive enough to accurately control the low forces typical for soft materials and robust enough for high-strength materials.
Q: What is the significance of "closed-loop control" in a modern test machine?
A: Closed-loop control is a fundamental feature for precision testing. The system continuously monitors the actual feedback signal (e.g., force from the load cell or position from the encoder) and compares it in real-time to the desired command signal (the test profile). Any difference (error) is instantly corrected by adjusting the drive system. This allows for exceptional accuracy and stability in maintaining a constant load rate, strain rate, or displacement rate, even as the specimen's properties change during the test (like during yielding). It is superior to older open-loop systems that simply sent a voltage to a motor without verifying the result.
Q: How does environmental testing integrate with a standard test machine?
A: Many material properties are temperature-dependent. To simulate real-world conditions, an environmental chamber or furnace can be installed around the test specimen on the machine. These chambers can range from -70°C to over +1500°C. The test machine must be equipped with specialized grips and extensometers that function accurately at these extremes, and with feed-through ports for the chamber. The test software synchronizes temperature profiles with mechanical test profiles. For instance, Kaxite Sealing routinely uses environmental chambers on test machines to verify seal performance across the specified operating temperature range of our products.
