In the intricate world of industrial machinery and fluid systems, the unassuming gaskets plays a pivotal role. These critical sealing components are the first line of defense against leaks, ensuring operational safety, efficiency, and environmental compliance. At Kaxite Sealing, with decades of engineering excellence, we understand that a gasket is far more than a simple piece of material—it is a precision-engineered solution designed to withstand extreme pressures, temperatures, and chemical exposures. This comprehensive guide delves into the essential parameters, material science, and applications of industrial gaskets, providing the detailed information engineers, procurement specialists, and maintenance professionals need to make informed decisions.
The primary function of a gasket is to create a static seal between two or more mating surfaces, preventing the escape or ingress of fluids (liquids or gases) under a wide range of operating conditions. This seemingly simple task is complex, as the gasket must compensate for inherent imperfections, flange rotation, and thermal expansion in the assembly. Gaskets are ubiquitous across industries:
Selecting the correct gasket is a multi-variable equation. At Kaxite Sealing, we categorize selection criteria into four pillars: Material, Operating Conditions, Flange Design, and Compliance Standards.
The gasket material is the foundation of its performance. Here are the primary categories:
Understanding the following parameters is crucial for matching a gasket to its service. Kaxite Sealing provides certified test data for all our products.
| Parameter | Description | Why It Matters | Kaxite Sealing Example Range |
|---|---|---|---|
| Temperature Range | The minimum and maximum continuous operating temperatures the gasket can withstand without degradation. | Exceeding limits can cause hardening, creep relaxation, or combustion of the gasket material, leading to failure. | -240°C to +1000°C (PTFE to Graphite/Stainless Steel) |
| Pressure Rating (PSI/Bar) | The maximum internal pressure the sealed joint can handle with the specified gasket. | A gasket must resist "blow-out" pressure. The rating is interdependent with temperature and flange design. | Vacuum to 2,500+ Bar (dependent on type) |
| Chemical Compatibility | The gasket material's resistance to corrosion, swelling, or deterioration when exposed to specific media. | Incompatibility is a leading cause of premature failure. Must be checked against the full chemical spectrum of the process fluid. | Comprehensive chemical resistance charts provided for all materials (e.g., EPDM for steam/water, Viton® for oils/fuels). |
| Compression Set | The material's ability to recover its original thickness after prolonged compression. | A low compression set indicates good resilience and long-term sealing ability, preventing leaks from bolt relaxation. | <15% for premium graphite composites. |
| Creep Relaxation | The loss of clamping force in a bolted joint over time under temperature and pressure. | High creep relaxation leads to a drop in sealing stress, causing leaks. Critical for high-temperature applications. | Excellent resistance in spiral-wound gaskets with flexible graphite filler. |
| Bolt Load | The seating stress required to properly compress the gasket to achieve an effective seal (yield stress). | Informs flange and bolting design. Too low leads to under-compression; too high can crush the gasket. | Varies by material: e.g., PTFE: 2,000-4,000 PSI, Flexible Graphite: 5,000-7,000 PSI. |
The gasket must be compatible with the flange face type. Kaxite Sealing manufactures gaskets for all standard and custom designs:
Our portfolio is engineered to cover every industrial need, from standard water pipes to critical nuclear applications.
| Product Series | Core Material | Typical Applications | Key Advantages | Standards Met |
|---|---|---|---|---|

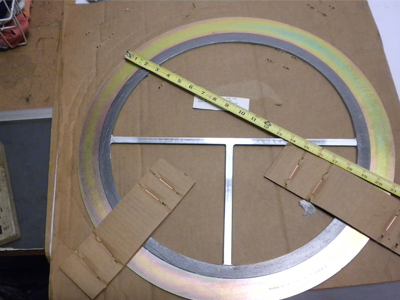

| KX-GraphiteFlex | Exfoliated Graphite, SS304/316 Insert | Heat exchangers, boiler manways, valve bonnets, high-temperature steam. | Superior thermal conductivity, excellent chemical resistance (except strong oxidizers), low creep relaxation. | ASME B16.20, B16.21, ISO 15848, TA-LUFT |

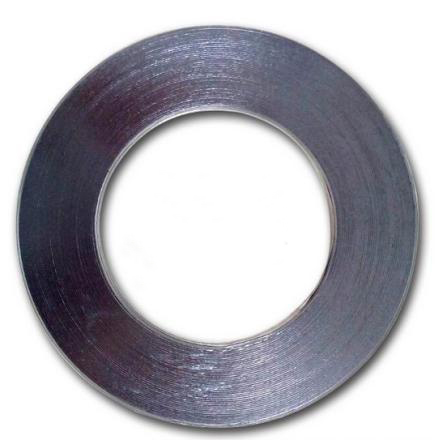

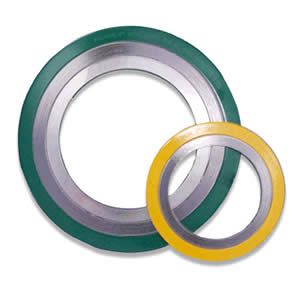

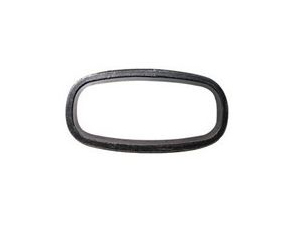

| KX-SpiralWound | SS316 Metal Windings + Graphite/PTFE Filler | Refinery piping, chemical process flanges (RF flanges). | Proven reliability, excellent resilience and recovery, handles thermal cycling and pressure fluctuations. | ASME B16.20, API 601, NACE MR0175 |
| KX-PTFE Pure | Virgin or Filled Polytetrafluoroethylene | Pharmaceutical, food & beverage, aggressive chemical services (acids, caustics). | Ultra-inert, FDA compliant, wide chemical resistance, low friction. | FDA CFR 21, USP Class VI, 3-A Sanitary Standards |
| KX-Elastomeric | NBR, EPDM, Silicone, FKM (Viton®) | Water, air, low-pressure fuel, cooling systems, general industrial. | Cost-effective, easy to install, good seal with low bolt load. | ASTM F104, SAE J518, DIN 7603 |
| KX-Metal RTJ | Soft Iron, Stainless Steel 316, Inconel 625 | Oil & gas wellheads, Christmas trees, high-pressure piping (API flanges). | Extreme pressure integrity, metal-to-metal seal, high temperature capability. | ASME B16.20, API 6A, 17D, NACE MR0103 |
Q: How often should industrial gaskets be replaced?
A: There is no universal timeline. Replacement depends on service conditions, material, and observed performance. Gaskets in high-cycle or extreme service may need replacement during scheduled maintenance outages, typically every 1-5 years. Visual inspection during disassembly is key. Replace any gasket that shows signs of compression set, cracking, chemical attack, or permanent deformation. Kaxite Sealing recommends following a plant's preventive maintenance (PM) schedule and always using a new gasket when a joint is broken open.
Q: Can I reuse a gasket?
A: As a definitive rule, no. Gaskets are designed to be single-use sealing elements. Once compressed, they undergo permanent deformation to conform to the flange imperfections. Reusing an old gasket compromises its ability to recover and fill micro-gaps, significantly increasing the risk of a leak. The cost of a new gasket is negligible compared to the safety, environmental, and downtime costs of a leak.
Q: What is the proper procedure for installing a gasket?
A: Correct installation is critical. First, ensure flange faces are clean, undamaged, and parallel. Inspect the new gasket for defects. Align the gasket perfectly centered on the flange. Use appropriate lubricants on bolts if specified. Follow a cross-bolting pattern (e.g., star pattern) and tighten bolts in multiple incremental passes to the torque value specified by the flange standard or engineering guidelines. This ensures even gasket compression and prevents distortion.
Q: What causes a gasket to fail prematurely?
A: Premature failure often stems from incorrect selection or installation. Common causes include: selecting a material incompatible with the process chemical or temperature; using a gasket with insufficient pressure rating for the service; improper bolt tightening (under-torquing, over-torquing, or uneven torque); flange misalignment or surface damage; and selecting a gasket type unsuitable for the flange face design (e.g., using an RF gasket on an FF flange).
Q: How do I choose between a spiral-wound and a solid metal gasket?
A: The choice hinges on application specifics. Spiral-wound gaskets (like our KX-SpiralWound series) are versatile, offering excellent resilience and are forgiving to minor flange imperfections and thermal cycling. They are the go-to for most refinery and process plant raised-face flanges. Solid metal gaskets (like RTJ or solid metal oval) are used for the highest pressure integrity applications, such as wellheads and hyperbaric systems, where maximum sealing force and zero permeation are required on specially machined grooves.
Q: Are Kaxite Sealing gaskets compliant with industry standards?
A: Absolutely. Compliance is non-negotiable. Kaxite Sealing designs and manufactures gaskets to meet or exceed all relevant international and industry-specific standards. This includes dimensional standards like ASME B16.20 and B16.21, material specifications like ASTM, and performance standards for emissions like ISO 15848-1 for fugitive emissions and TA-Luft for the European market. Certificates of Conformance (CoC) and material traceability are provided for critical applications.
Q: Can Kaxite Sealing provide custom gasket solutions?
A: Yes, custom engineering is a core strength. We routinely produce gaskets in non-standard sizes, unusual materials, and for unique flange designs. Our technical team can work from a sample, a detailed drawing, or CAD file to develop a prototype and production run. This service is essential for legacy equipment, OEM prototypes, and applications with unique space or performance constraints.
