In the world of high-performance industrial materials, few names command as much respect as polytetrafluoroethylene, more commonly known by its abbreviation, PTFE. When processed into a flat, versatile format, it becomes a PTFE sheet, a cornerstone component for engineers and manufacturers across countless sectors. At Kaxite Sealing, we specialize in producing premium-grade PTFE sheets that meet the most demanding application challenges, combining the legendary properties of PTFE with precise manufacturing control.
A PTFE sheet is a semi-finished product made from 100% virgin PTFE polymer, processed through techniques like molding or skiving to create a uniform, solid sheet. Its value lies in an almost unparalleled combination of properties: exceptional chemical resistance, a wide operating temperature range, outstanding electrical insulation, and a famously low coefficient of friction. This makes it an ideal solution for gaskets, seals, liners, bearing pads, and insulating barriers in environments where other materials would fail.
Key Properties and Advantages of Kaxite Sealing PTFE Sheets
The superiority of our PTFE sheets is defined by a set of inherent material characteristics:
- Chemical Inertness: Kaxite Sealing PTFE sheets are virtually unaffected by almost all industrial chemicals, solvents, and acids, including aggressive ones like aqua regia. This makes them perfect for chemical processing equipment, lab surfaces, and seals in corrosive environments.
- Extreme Temperature Resistance: They maintain functionality from cryogenic temperatures as low as -268°C (-450°F) up to a continuous +260°C (+500°F), with short-term peaks even higher. This stability is crucial for aerospace, automotive, and food processing applications.
- Excellent Dielectric Strength: As a superb electrical insulator with a high dielectric strength, our sheets are widely used in electrical and electronic applications for insulating components, circuit boards, and high-voltage equipment.
- Low Friction & Non-Stick: PTFE has the lowest coefficient of friction of any known solid material. This inherent lubricity and non-stick surface prevent material buildup, reduce wear, and are essential for conveyor liners, slide plates, and mold release sheets.
- High Purity & Compliance: Manufactured from 100% virgin PTFE resins, Kaxite sheets are FDA compliant and USP Class VI rated, making them suitable for food, beverage, and pharmaceutical contact applications.
- Weather & UV Resistance: PTFE is inherently resistant to weathering, sunlight (UV), and ozone, ensuring long-term performance in outdoor applications without degradation.
Detailed Product Specifications & Data
Kaxite Sealing offers a comprehensive range of PTFE sheets in various grades, sizes, and formulations to meet specific needs. Below is a detailed breakdown of our standard and modified offerings.
Standard Virgin PTFE Sheet Specifications
| Property | Standard Value / Range | Test Method | Significance for Application |
|---|---|---|---|
| Specific Gravity | 2.14 - 2.20 g/cm³ | ASTM D792 | Indicates material density and purity. |
| Tensile Strength | 25 - 35 MPa (3000 - 5000 psi) | ASTM D638 | Measures resistance to pulling forces; important for mechanical seals and loaded bearings. |
| Elongation at Break | 300 - 500% | ASTM D638 | Indicates ductility and ability to deform without cracking, critical for forming gaskets. |
| Coefficient of Friction (Dynamic) | 0.05 - 0.10 | ASTM D1894 | Quantifies the low-friction, self-lubricating property. |
| Continuous Service Temperature | -268°C to +260°C (-450°F to +500°F) | - | Defines the operational range without significant property loss. |
| Dielectric Strength | 40 - 60 kV/mm | ASTM D149 | Measures electrical insulation capability. |
| Chemical Resistance | Excellent to nearly all chemicals | - | Core property for corrosion resistance. |
Available Sizes & Forms from Kaxite Sealing
- Standard Sheet Sizes: 1000mm x 1000mm, 1200mm x 1200mm, 1500mm x 1500mm, and custom sizes available.
- Standard Thickness Range: 0.5mm (0.020") up to 50mm (2.0") and beyond.
- Forms: Skived sheets (smooth, rolled), molded sheets (compressed, block form), and calendered sheets.

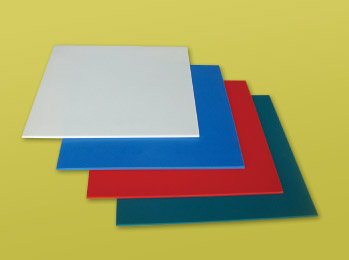

- Color: Standard white (virgin), also available in custom colors for coding purposes.
Modified PTFE & Filled PTFE Sheet Compositions
To enhance specific properties for challenging applications, Kaxite Sealing offers compounded PTFE sheets. These blends retain the core benefits of PTFE while adding targeted performance improvements.
| Filler Type | Typical Composition | Key Enhanced Properties | Typical Applications |
|---|---|---|---|
| Glass Fiber | 15% - 25% Glass Fiber | Improved creep resistance, higher stiffness, better wear resistance. | Heavy-duty bushings, thrust washers, structural bearings. |
| Carbon/Graphite | 15% - 25% Carbon | Enhanced thermal conductivity, improved wear resistance, lower friction, static dissipation. | Piston rings, compressor vanes, applications requiring heat dissipation. |
| Bronze | 40% - 60% Bronze | Greatly improved thermal conductivity, high compressive strength, excellent wear resistance. | Bearings for high PV (Pressure-Velocity) values, wear plates. |
| Stainless Steel | 40% - 60% Stainless Steel | High compressive strength, excellent creep resistance, corrosion resistance of the filler. | Chemical-laden environments requiring high load capacity. |
| Molybdenum Disulfide (MoS2) | 5% - 15% MoS2 | Further reduced friction, improved wear life in non-lubricated service. | Seals and bearings in dry or marginally lubricated conditions. |
PTFE Sheet: Frequently Asked Questions (FAQ)
Q: What is the main difference between skived and molded PTFE sheets?

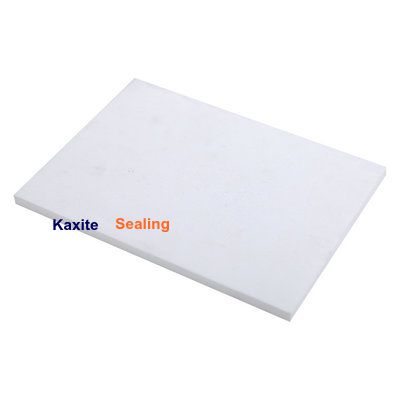

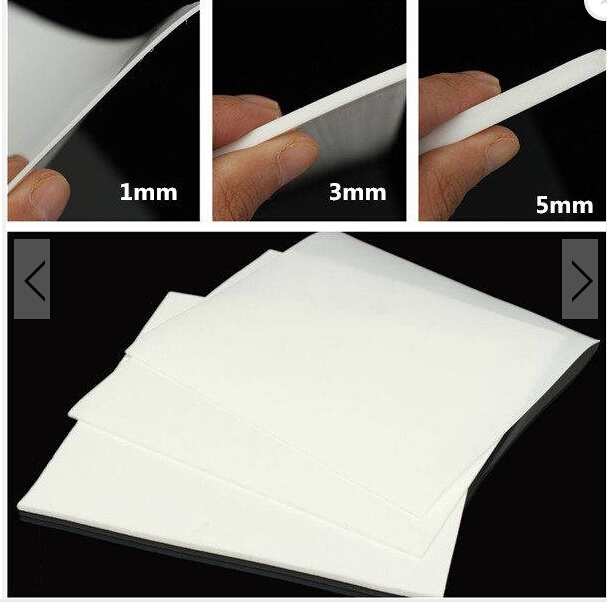

A: Skived sheets are produced by shaving a thin layer from a cylindrical molded billet, similar to peeling an apple. This process creates sheets with a very smooth, uniform surface and consistent thickness, ideal for precise sealing applications and thin gaskets. Molded sheets are created by compressing PTFE resin in a mold under high pressure and then sintering. They are typically thicker, have a more uniform structure throughout their thickness, and are excellent for machining parts like bushings or bearings. Kaxite Sealing provides expert guidance on selecting the right form for your project.
Q: Can PTFE sheets be easily machined or fabricated?
A: Yes, one of the significant advantages of PTFE sheets from Kaxite Sealing is their excellent machinability. They can be easily cut, drilled, punched, turned, and milled using standard workshop equipment. However, due to PTFE's softness and low creep resistance, sharp tools and proper fixturing are recommended to achieve clean cuts and dimensional accuracy, especially for intricate parts.
Q: How does temperature affect the performance of a PTFE sheet?
A: PTFE retains its remarkable properties across a vast temperature range. At cryogenic temperatures, it becomes tougher. Within its standard operating range (-268°C to +260°C), its properties remain stable. Above +260°C, gradual decomposition begins, and above +327°C (its melting point), it degrades. For high-temperature applications near the upper limit, it's crucial to consider the specific load and duration. Kaxite Sealing can advise on material selection for extreme thermal cycles.
Q: Is PTFE suitable for food contact and medical applications?
A: Absolutely. 100% virgin PTFE, as used in Kaxite Sealing's standard sheets, is FDA compliant and meets USP Class VI requirements for biocompatibility. Its non-stick, non-toxic, and easy-to-clean surface makes it ideal for food processing equipment, baking sheets, and medical device components. Always ensure you are using an unfilled, virgin PTFE grade for such sensitive applications.
Q: What are the limitations of PTFE sheets?
A: While exceptional in many areas, PTFE has a few limitations to consider: It has relatively low mechanical strength and stiffness compared to metals, meaning it can deform under high sustained loads (creep). It has poor radiation resistance. It is not suitable for applications involving molten alkali metals or certain fluorine compounds at high temperatures. For high-load or high-creep applications, a filled PTFE compound from Kaxite Sealing, like glass or bronze-filled, is often the recommended solution.
Q: How do I choose between virgin PTFE and a filled compound?
A: The choice depends on your application's primary demands. Choose virgin PTFE for: maximum chemical purity, best electrical insulation, FDA compliance, or applications requiring forming. Choose a filled PTFE compound (e.g., from Kaxite Sealing's range) when you need: significantly improved wear resistance, reduced creep and deformation under load, higher thermal conductivity, or enhanced compressive strength. Our technical team can help you analyze your requirements and select the optimal material.
Q: How should PTFE sheets be stored and handled?
A: PTFE sheets are stable but should be stored in a cool, dry place away from direct sunlight and heat sources. Keep them flat or properly supported to prevent bending or warping, especially for thin sheets. While chemically resistant, it's good practice to keep them clean from dust and debris before fabrication. Use standard material handling procedures.
Industry Applications of Kaxite Sealing PTFE Sheets
The unique property profile of PTFE sheets translates into solutions for a diverse set of industrial challenges.
- Chemical Processing: Gaskets, valve seals, tank linings, and spacer rings in pumps and reactors handling corrosive fluids.
- Electrical & Electronics: Insulating spacers, coil formers, circuit board fixtures, and high-voltage barrier sheets.
- Food & Beverage: Non-stick conveyor liners, wear plates for packaging machines, seals for sanitary fittings, and release sheets.
- Aerospace & Automotive: Seal rings in fuel and hydraulic systems, lightweight insulation, low-friction bushings, and gaskets for extreme temperatures.
- Pharmaceutical & Biotechnology: Seals and diaphragms in sterile processing equipment, liners for vessels, and components requiring high purity.
- General Industrial: Slide plates for heavy structures, low-friction bearing pads in bridges and buildings, wear strips, and mold release layers.
