As a cornerstone of modern industrial sealing, Expanded graphite gaskets, also known as flexible graphite gaskets, represent a significant leap in sealing technology. These gaskets are manufactured from pure graphite that has been exfoliated or expanded, resulting in a material with exceptional natural properties. At Kaxite Sealing, we specialize in engineering these advanced sealing solutions to meet the most demanding industrial challenges. The intrinsic characteristics of expanded graphite—including outstanding thermal conductivity, superior chemical resistance (except against strong oxidizing agents), and impressive resilience—make it an ideal choice for sealing applications across diverse sectors such as chemical processing, power generation, petrochemicals, and pharmaceuticals.
The manufacturing process begins with high-purity natural graphite flakes. These flakes are treated with intercalation chemicals and then rapidly exposed to high heat, causing them to expand volumetrically by hundreds of times. This expansion creates a vermiform or worm-like structure. This material is then calendared into flexible sheets without the use of binders, maintaining the purity and performance of the graphite. These sheets form the base from which Kaxite Sealing precision-cuts, molds, or punches gaskets of virtually any shape and size, including sheet gaskets, spiral-wound gasket filler, and ring gaskets.
The performance of an expanded graphite gasket is defined by a set of critical parameters. Understanding these specifications is essential for selecting the correct gasket for your application and ensuring long-term, leak-free operation.
Kaxite Sealing expanded graphite gaskets are manufactured to meet or exceed rigorous international standards.
| Standard Type | Standard Number / Designation | Description / Scope |
|---|---|---|
| Material Standard | ASTM F721, DIN 28091, ISO 19003 | Standard specifications for flexible graphite sealing materials. |
| Gasket Dimensions | ASME B16.21, EN 12560, DIN 2690-2696 | Standard dimensions for non-metallic flat gaskets for pipe flanges. |
| Fire Safety | API 607 / ISO 10497 (Fire Test) | Type testing for fire resistance of soft-seated quarter-turn valves. Graphite is inherently fire-resistant. |
| Quality Management | ISO 9001:2015 | Kaxite Sealing's manufacturing processes are certified under this quality management standard. |
| Emission Compliance | TA-Luft, ISO 15848 | Low emission sealing standards, which expanded graphite gaskets can be designed to meet. |
We offer expanded graphite in multiple forms to suit specific application needs.
| Product Form | Typical Density Range | Standard Thickness | Common Applications |
|---|---|---|---|
| Plain Graphite Sheets | 1.0 - 1.3 g/cm³ | 0.5mm to 3.0mm | Cut gaskets, basic flanges, heat exchangers. |
| Reinforced Sheets (with SS 316, Inconel mesh) | 1.4 - 2.0 g/cm³ | 1.5mm to 3.0mm | High-pressure flanges, heat exchangers, manways. |
| Spiral Wound Gasket Filler | N/A (as filler) | As per SWG standards | Filler material in spiral wound gaskets for high P/T services. |
| Corrugated/Profiled Sheets | 1.1 - 1.4 g/cm³ | 1.6mm, 3.2mm | Provides higher seating stress, used in heat exchangers. |
| Ring Gaskets (Die-Cut, Skived) | 1.1 - 1.6 g/cm³ | 1.5mm, 3.0mm | Standard pipe flanges (ASME B16.21, DIN). |
Q: What are the primary advantages of using expanded graphite gaskets over traditional materials like compressed non-asbestos (CNA) or PTFE?
A: Expanded graphite gaskets offer several distinct advantages. They provide superior thermal conductivity, which helps dissipate heat from the flange area, reducing bolt stress and thermal gradient issues. They have exceptional chemical resistance to a broader range of chemicals compared to many elastomers and PTFE, especially in extreme pH environments. Their natural flexibility and recovery allow them to seal effectively on imperfect or lightly scratched flange surfaces where harder materials might fail. They are also inherently fire-safe, as graphite does not burn but can oxidize slowly at very high temperatures in air. Finally, they can operate across a much wider temperature range, from deep cryogenics to extreme heat.
Q: Are there any chemical services where expanded graphite gaskets should not be used?
A: Yes, while chemically inert in most situations, pure expanded graphite is not recommended for prolonged use with strong oxidizing agents. This includes concentrated nitric acid (HNO3), sulfuric acid (H2SO4) above 98%, concentrated perchloric acid, and halogens like chlorine or fluorine in certain wet or high-temperature conditions. In such environments, oxidation can occur, potentially degrading the gasket. For these specific media, Kaxite Sealing can recommend alternative materials or specially treated/impregnated graphite grades designed to improve oxidation resistance.
Q: How do I determine the correct thickness and density for my flange application?
A: Selection depends on flange type, surface finish, pressure, temperature, and media. For standard raised face (RF) flanges with a serrated finish, a 1.5mm thickness is common. For higher pressures or flat-face flanges, a thicker gasket (e.g., 3.0mm) may be needed to accommodate compression and flange rotation. Density affects recovery and sealing force: higher density (e.g., 1.6 g/cm³) offers better resilience and creep resistance for critical services, while standard density (1.1 g/cm³) is suitable for general purposes. Kaxite Sealing's technical team can provide precise selection guidance based on your operating conditions and flange specifications.
Q: Can expanded graphite gaskets be used in food, pharmaceutical, or potable water applications?
A> Yes, but with important considerations. Pure, uncontaminated expanded graphite is inherently a clean material. For applications requiring regulatory compliance, such as FDA, USP Class VI, or WRAS (Water Regulations Advisory Scheme), it is crucial to source gaskets from a certified manufacturer like Kaxite Sealing. We offer grades manufactured with strict controls to prevent contamination, ensuring the material meets the necessary purity and leaching standards for contact with food, pharmaceuticals, or drinking water.
Q: What is the difference between a plain expanded graphite sheet gasket and a reinforced one? When should I choose reinforced?

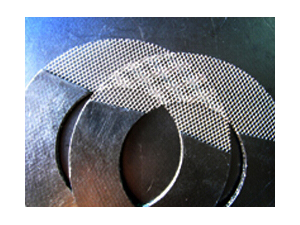

A> A plain graphite sheet gasket is made solely of calendared expanded graphite. A reinforced gasket has a thin metallic core (typically stainless steel 304/316 or Inconel) laminated within the graphite layers. Reinforcement is chosen for several reasons: to provide handling strength and prevent breakage, especially in large-diameter or complex-shaped gaskets; to improve dimensional stability and prevent blow-out in higher-pressure/vacuum applications; and to reduce overall creep relaxation. Kaxite Sealing recommends reinforced graphite gaskets for pressures above Class 300, for large manways and heat exchanger channels, and for services with significant thermal or pressure cycling.
Q: How should I store and handle expanded graphite gaskets before installation?
A> Proper handling is key to preserving performance. Store gaskets in their original packaging in a clean, dry, and temperature-stable environment away from direct sunlight and moisture. Avoid folding, creasing, or dropping them, as graphite is relatively soft and can be damaged. Keep them away from strong oxidizing chemicals. During installation, ensure the flange surfaces are clean, undamaged, and aligned. Use a torque wrench and follow a cross-pattern bolting procedure to apply the recommended bolt load evenly, compressing the gasket to its designed thickness.
Q: Do expanded graphite gaskets require a surface coating or sealant?
A> Generally, no. One of the major benefits of expanded graphite is its ability to form an effective seal directly against clean metal surfaces without additional sealants, which can degrade, carbonize, or contaminate the process fluid. The graphite naturally conforms to the flange micro-finish. In rare cases, for exceptionally low sealing stress applications or to provide temporary corrosion inhibition during storage, a very light application of an approved anti-seize or graphite-based paste might be used, but this is not standard practice and should be evaluated case-by-case with Kaxite Sealing's engineers.
