In the demanding world of industrial sealing, the quality of braided packing directly impacts equipment longevity, safety, and operational efficiency. The foundation of superior packing lies in the machinery that creates it. As a cornerstone of sealing technology for decades, Kaxite Sealing has dedicated itself to the engineering and production of high-performance braiding machinery. This deep-dive explores the critical features, specifications, and applications of modern braiding packing machines, underscoring why precision engineering from specialists like Kaxite Sealing is non-negotiable for manufacturers seeking a competitive edge.

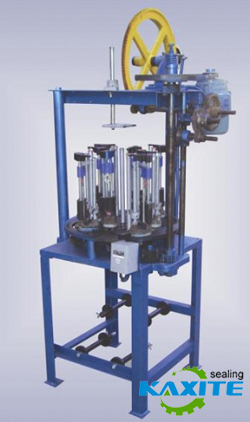

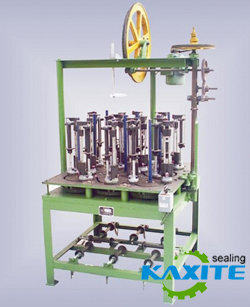

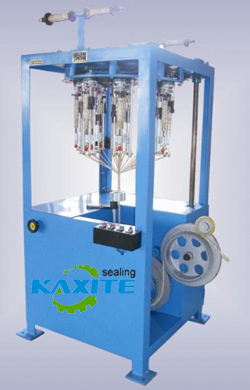

Modern braiding packing machines are complex assemblies designed for reliability and precision. Key components include:
Selecting the right machine requires a thorough understanding of its capabilities. Below is a detailed breakdown of standard and advanced parameters found in Kaxite Sealing's braiding machinery portfolio.

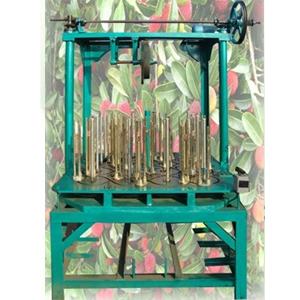

| Parameter | Standard Range | Description & Impact |
|---|---|---|
| Number of Carriers | 16, 24, 32, 48, 64 | Determines the maximum number of yarn ends and influences braid density, flexibility, and production speed for different packing sizes. |
| Braiding Diameter Range | 1 mm to 50 mm (0.04" to 2") | The minimum and maximum core diameter the machine can braid over. Defines the product range (small valve stems to large pump shafts). |
| Machine Speed | 30 - 120 rpm (carrier revolutions) | Directly affects production output. Higher speeds require superior carrier tracking and vibration dampening for consistent quality. |
| Yarn Bobbin Size | Standard: 3" tube, Custom options available | Larger bobbins reduce downtime for material changeovers, increasing overall equipment effectiveness (OEE). |
| Power Requirement | 3-Phase, 380V/415V, 50/60Hz (Configurable) | Standard industrial power setup. Machines are often equipped with variable frequency drives (VFDs) for smooth acceleration and energy savings. |
| Control System | PLC with Color HMI | Allows storage of multiple product recipes, fault diagnostics, production counting, and integration with factory networks. |
| Metric | Kaxite Sealing Standard | Industry Significance |
|---|---|---|
| Tension Control Accuracy | ± 5% across all carriers | Critical for uniform packing density, which ensures consistent sealing performance and prevents leak paths. |
| Diameter Tolerance | ± 0.1 mm on finished braid | Tight tolerances mean less finishing work, better fit in packing rings, and predictable compression during installation. |
| Picks Per Inch (PPI) Control | Programmable from 5 to 40 PPI | PPI directly controls braid tightness and flexibility. Programmable control allows quick changeovers between different packing grades. |
| Noise Level | < 75 dB(A) at 1 meter | Reflects quality of mechanical components and assembly, contributing to a safer and more comfortable work environment. |
| Frame Construction | Rigid Steel, CNC Machined Mounting Points | Ensures long-term alignment, reduces wear on moving parts, and minimizes maintenance needs over a 20+ year lifespan. |
Kaxite Sealing's machines are engineered to handle the full spectrum of packing materials without compromising on braid integrity.
These machines produce packing for critical applications across industries: centrifugal and reciprocating pumps in chemical processing, valves in oil & gas refineries, agitators in pharmaceuticals, and expansion joints in power generation.

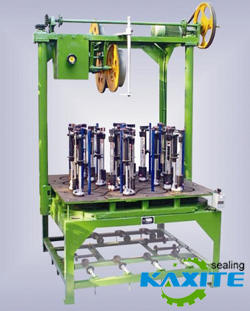

What is the main difference between a 24-carrier and a 48-carrier machine?
The primary difference is production capability and braid complexity. A 24-carrier machine is ideal for producing smaller diameter, standard-density packing efficiently. A 48-carrier machine can handle more yarn ends, allowing for the production of larger diameter packing, higher-density braids for high-pressure applications, or the incorporation of more material types in a single braid. It offers greater versatility for a manufacturer with a broad product line.
How important is automated tension control, and can it be retrofitted?
Automated, individual carrier tension control is paramount for producing premium, consistent packing. It compensates for bobbin diameter changes during run-off and ensures every yarn in the braid contributes equally to the structure. While basic tensioners can be adjusted manually, retrofitting a full electronic tension system to an older machine is often complex and costly, as it requires new carriers, sensors, and control integration. It is a core design feature in modern Kaxite Sealing machines.
What maintenance is required for a braiding packing machine?
Regular maintenance is key to longevity. Daily tasks include cleaning of yarn paths and checking for debris. Weekly, carriers should be inspected for worn parts (e.g., tension springs, pigtails) and gears should be checked for lubrication. Monthly, a thorough inspection of the horngear track, take-up drive belts, and electrical connections is advised. Kaxite Sealing provides comprehensive maintenance schedules and training with each machine to maximize uptime.
Can one machine produce both square and round braid?
The fundamental braid pattern (square/round/interbraid) is determined by the mechanical path of the carriers within the braiding head. Most standard machines are set for one primary pattern. However, some advanced models from Kaxite Sealing offer convertible heads or specialized carrier setups that allow for switching between patterns with a significant changeover procedure involving parts replacement and recalibration.
How does the control system improve product quality and traceability?
A modern PLC control system does more than just start and stop the machine. It logs all production parameters (speed, PPI, tension setpoints) for each batch, creating a digital record. This ensures perfect repeatability between batches. If a quality issue arises, operators can review the exact machine settings used. Furthermore, production counters and efficiency reports help in lean manufacturing management, reducing waste and optimizing output.
What factors most influence the final cost of a braiding packing machine?
The final cost is driven by several key factors: the number of carriers and machine size, the level of automation (basic manual tension vs. full electronic tension), the sophistication of the control system (simple speed control vs. recipe-based PLC), the inclusion of optional systems like in-line impregnation, and the robustness of construction materials. A Kaxite Sealing specialist can help tailor a machine specification that balances upfront investment with long-term productivity and quality goals.

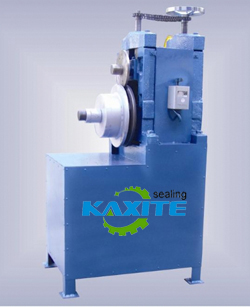

Integrating a new braiding machine goes beyond the unit itself. Consider upstream needs like yarn creeling and bobbin winding efficiency. Downstream, ensure your take-up and spooling equipment matches the machine's output speed and package size. Proper factory floor planning for material handling and operator access also contributes significantly to smooth workflow. Kaxite Sealing's engineering team offers consultative services to review your entire process, ensuring the new machinery delivers its full potential within your specific operational context.
