In industrial piping and flanged connection systems, preventing electrochemical corrosion and ensuring long-term operational safety are paramount. This is where specialized sealing and isolation solutions become critical. Flange Insulation Gasket Kits are engineered precisely for this purpose, providing a reliable barrier against galvanic corrosion and unwanted current flow between dissimilar metals in a pipeline assembly.
At Kaxite Sealing, we have dedicated decades to perfecting these essential components. Our kits are not merely standard gaskets; they are comprehensive, engineered systems designed for maximum safety, durability, and performance in the most demanding environments, from offshore oil platforms to chemical processing plants and power generation facilities.

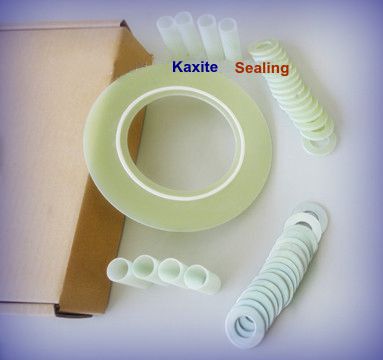

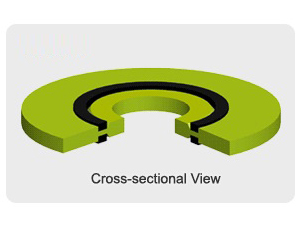

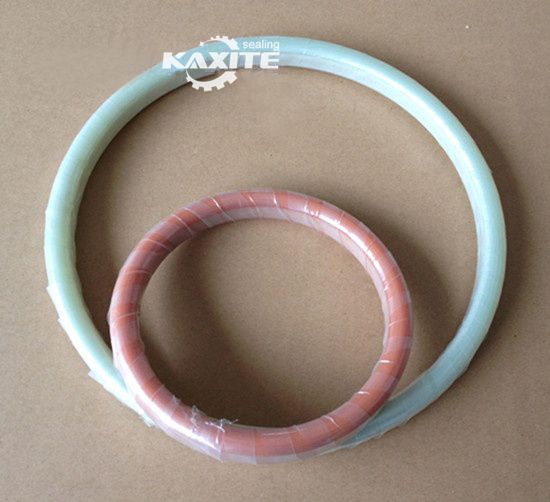

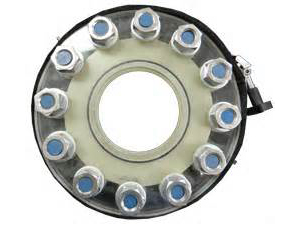

A Flange Insulation Gasket Kit is a complete assembly used to electrically isolate two flanged piping sections. Its primary function is to break the electrical continuity in the pipeline, thereby preventing galvanic corrosion which occurs when dissimilar metals are in contact in the presence of an electrolyte. A typical kit includes more than just the insulating gasket; it is a system comprising several key components that work in unison.
Selecting the correct insulation kit requires a thorough understanding of the operating conditions. Below are the critical parameters that define the performance and suitability of Kaxite Sealing Flange Insulation Gasket Kits.

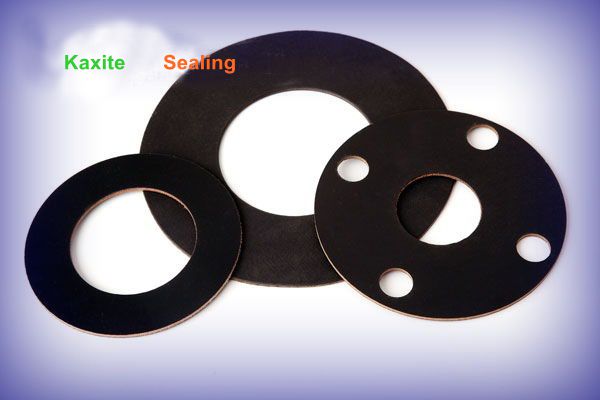

The choice of insulating material is crucial for temperature, pressure, and chemical resistance. Our standard offerings include:
| Material | Max Continuous Temp. | Pressure Rating | Dielectric Strength (kV/mm) | Primary Chemical Resistance | Best For |
|---|---|---|---|---|---|
| Virgin PTFE | 260°C (500°F) | High (Varies with design) | >19 | Excellent, resistant to almost all chemicals | Aggressive chemical services, high purity |
| FEP | 205°C (400°F) | Medium-High | >20 | Excellent, similar to PTFE | Less severe temperatures than PTFE, good anti-stick |
| PTFE Composite (Glass/Phenolic filled) | 290°C (550°F) | Very High | >15 | Very Good, some limitations | High bolt load applications, improved creep resistance |
| GPO (Glass Reinforced Epoxy) | 150°C (300°F) | High | >35 | Good for oils, solvents, mild acids | Electrical substations, water pipelines, cost-effective option |
Q: When is a Flange Insulation Gasket Kit required?
A: These kits are essential in several scenarios: 1) When connecting pipelines made of dissimilar metals (e.g., carbon steel to stainless steel, copper, or aluminum) to prevent galvanic corrosion. 2) In cathodic protection systems to isolate protected sections from unprotected ones or to isolate tanks from buried pipelines. 3) To prevent stray electrical currents from entering sensitive equipment. 4) In hazardous areas to reduce sparking risks from static discharge or fault currents.
Q: Can I use just an insulating gasket without the washers and sleeves?
A: No, this is a common and critical mistake. The entire flanged joint must be isolated. If the bolts, nuts, and washers are not insulated, they create a parallel electrical path, rendering the insulating gasket ineffective. The bolt will contact both flanges, allowing current to flow and corrosion to occur. A complete Kaxite Sealing kit ensures full-circuit isolation.
Q: How do I determine the correct thickness for the insulating components?
A: The thickness of the gasket, washers, and sleeves is carefully engineered. The gasket thickness must compensate for the flange separation it creates to ensure the bolts are of the correct length. Standard gasket thicknesses range from 1/16" to 1/4". Our engineering team calculates the required "bolt stretch" and provides specifications for the correct bolt length and component thickness based on your flange class, size, and insulation material.
Q: Are these kits reusable?
A: Generally, Flange Insulation Gasket Kits are designed for single use. During tightening, the insulating materials, especially polymers like PTFE, undergo compression and stress. Reusing them can compromise their sealing ability and dielectric properties. Kaxite Sealing recommends using a new kit every time a flanged joint is broken and remade to guarantee performance and safety.
Q: How do I properly install a Kaxite Sealing insulation kit?
A: Proper installation is key. First, ensure flange faces are clean, smooth, and free of debris. Slide insulating sleeves onto each bolt. Insert bolts through one flange. Place the insulating gasket (and centering ring if supplied) carefully between the flange faces. Bring the flanges together. On the opposite side, place an insulating washer, then a steel washer, and finally the nut on each bolt. Tighten the bolts gradually and evenly in a star or cross pattern to the specified torque value to ensure a uniform seal without damaging the insulating components.
Q: What maintenance or monitoring is required after installation?
A: While the kits themselves require no active maintenance, the integrity of the isolation should be periodically verified, especially in critical services. This is done using a low-resistance ohmmeter to check for electrical continuity across the flanged joint. A high resistance reading (typically >1 Megohm) indicates good isolation. Regular visual inspections for signs of leakage, compression set, or physical damage are also recommended during routine plant maintenance schedules.
Q: Can Kaxite Sealing provide kits for non-standard or custom flanges?
A: Absolutely. Our technical team specializes in designing and manufacturing insulation kits for special applications: large diameters, oval flanges, heat exchanger covers, proprietary flange designs, and connections requiring specific material certifications (e.g., NACE MR0175, FDA, USP Class VI). We work from your drawings and specifications to deliver a perfectly engineered solution.
Our commitment at Kaxite Sealing goes beyond supplying components. We deliver engineered solutions backed by deep industry knowledge.
Flange Insulation Gasket Kits from Kaxite Sealing are deployed across a wide spectrum of industries where pipeline integrity is non-negotiable.
