Copper gaskets are a cornerstone of industrial sealing, renowned for their exceptional thermal conductivity, malleability, and corrosion resistance. At Kaxite Sealing, we specialize in engineering high-performance copper gaskets that meet the rigorous demands of various high-pressure and high-temperature applications.

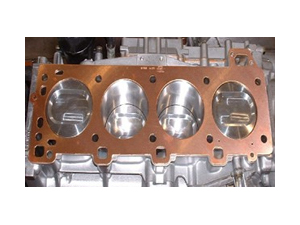

Copper gaskets are sealing components made from pure copper or copper alloys. Their primary function is to create a tight, leak-proof seal between two mating surfaces, such as flanges in piping systems, engine cylinder heads, or heat exchangers. The inherent softness of copper allows it to deform slightly under compressive load, flowing into microscopic imperfections on the flange surfaces to create an effective barrier against fluids or gases.
The advantages of using copper for gaskets are numerous:
Kaxite Sealing copper gaskets are deployed across a wide spectrum of industries due to their versatile properties.
| Industry | Typical Application | Benefit of Copper |
|---|---|---|
| Automotive & Aerospace | Exhaust manifold gaskets, turbocharger seals, engine cylinder heads | Withstands extreme temperatures and thermal cycling from engines and exhaust systems. |
| Oil & Gas | Pipeline flange seals, wellhead equipment, valve seals in refineries | Resists high pressure and provides a reliable seal in critical, often corrosive, hydrocarbon service. |
| Power Generation | Heat exchanger gaskets, turbine seals, boiler penetrations | Superior heat dissipation and stability in high-temperature steam and water applications. |
| Chemical Processing | Reactor vessel seals, pump flanges, chromatography systems | Offers good compatibility with many chemicals and ensures process purity. |
| HVAC & Plumbing | Compressor seals, refrigerant line fittings, high-temperature water lines | Malleability ensures a perfect seal on tubular fittings and connections. |
Our copper gaskets are manufactured to precise specifications, ensuring consistency, reliability, and optimal performance. We offer both standard profiles and custom-engineered solutions.
| Material Grade | Composition | Density (g/cm³) | Brinell Hardness | Continuous Service Temperature | Primary Use Case |
|---|---|---|---|---|---|
| C11000 (ETP Copper) | 99.9% Cu min | 8.94 | 40-45 HB | Up to 250°C (480°F) | General purpose, electrical applications, plumbing. |
| C12200 (DHP Copper) | 99.9% Cu, P added | 8.94 | 42-48 HB | Up to 260°C (500°F) | Excellent for brazing and welding; used in piping systems. |
| CW024A (BS2875) | 99.85% Cu min | 8.89 | 45-80 HB | Up to 300°C (570°F) | High-temperature sealing, automotive exhausts. |

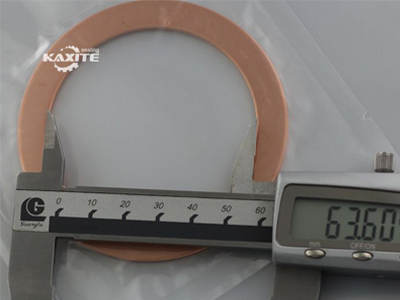

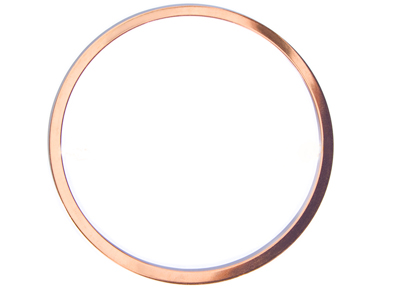

| Alloy 101 (Oxygen-Free Copper) | 99.99% Cu | 8.94 | 35-45 HB | Up to 200°C (390°F) | High-vacuum systems, electronics where hydrogen embrittlement is a risk. |
Kaxite Sealing provides a comprehensive range of profiles. Critical dimensions must be specified for quotation and manufacturing.

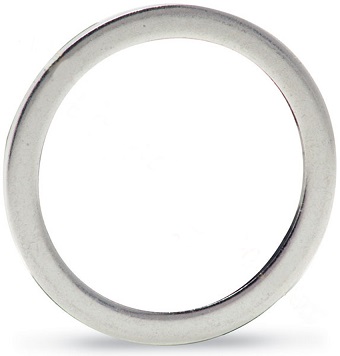

To enhance performance and longevity, Kaxite Sealing offers optional surface treatments.
| Treatment | Description | Benefit |
|---|---|---|
| Plain / Mill Finish | Standard finish as supplied from the mill. | Cost-effective, suitable for standard applications. |
| Electro-Tin Plating | A thin layer of tin electroplated onto the copper surface. | Prevents oxidation (tarnishing), improves corrosion resistance, and provides a more malleable surface for sealing. |
| Nickel Plating | A layer of nickel applied via electroplating. | Superior corrosion and oxidation resistance, ideal for harsh chemical or high-temperature environments. |
| Passivation | Chemical process to remove free iron and enhance the natural oxide layer. | Improves corrosion resistance without altering dimensions. |
Q: When should I choose a copper gasket over other materials like rubber or graphite?
A: Copper gaskets are the preferred choice in applications involving very high temperatures (exceeding 300°C/570°F), high pressures, or where excellent thermal conductivity is required. Unlike rubber, copper won't degrade under extreme heat. Compared to graphite, solid copper gaskets offer higher mechanical strength and are less prone to cold flow or blow-out in high-pressure steam service. They are ideal for static seals in exhaust systems, turbines, and heat exchangers.
Q: How do I determine the correct hardness (temper) for my copper gasket?
A: The hardness, or temper, is crucial for sealing performance. Annealed (soft) copper is most malleable and will conform best to imperfect flange surfaces, creating an excellent initial seal. Harder tempers (like half-hard or hard) provide greater structural integrity and resistance to crushing under extreme bolt load but require flatter, smoother flange surfaces. Kaxite Sealing engineers can advise on the optimal temper based on your flange finish, bolt load, and operating conditions.
Q: Can copper gaskets be reused?
A: Generally, solid copper gaskets are not designed for reuse. During installation, the copper deforms (yields) to fill the flange imperfections. Once disassembled, this deformed shape is specific to that initial installation, and its sealing capability is significantly reduced. Reusing a copper gasket risks leaks. Spiral wound gaskets with copper filler, however, have more recovery and may sometimes be reused if they are undamaged, though inspection by a qualified engineer is always recommended.
Q: What are the torque specifications for installing copper gaskets?
A: Correct bolt torque is critical. It must be high enough to achieve sufficient compression on the gasket to create a seal but not so high as to crush it completely or damage the flanges. There is no single universal torque value. It depends on the gasket dimensions (width, thickness), copper temper, flange material, bolt size/grade, and the use of lubricants. Always follow the equipment manufacturer's specifications or an industry standard like ASME PCC-1. Kaxite Sealing can provide general guidance based on your specific gasket design.
Q: How does Kaxite Sealing ensure the quality of its copper gaskets?
A: Kaxite Sealing implements a rigorous quality management system. Our process begins with certified raw material from reputable mills. We employ precision CNC machining, laser cutting, and stamping for accurate dimensions. Every batch undergoes dimensional inspection per ASME/ANSI standards. Material certificates (Mill Test Certificates) are available to trace the chemical and physical properties of the copper used. For critical applications, we can provide additional NDT (Non-Destructive Testing) reports.
Q: Are there any limitations or compatibility issues with copper gaskets?
A: While highly versatile, copper has limitations. It is not suitable for prolonged contact with strong acids (like sulfuric or nitric acid) or ammonia, which can cause stress corrosion cracking. In environments with high sulfur content, a protective plating like nickel is advisable. Copper is also electrically conductive, which may not be desirable in all electrical applications. Consulting with Kaxite Sealing's technical team about your specific media and operating environment is the best way to ensure compatibility.
Q: Does Kaxite Sealing offer custom-designed copper gaskets?
A: Absolutely. While we stock a wide range of standard sizes, a significant portion of our business is providing custom-engineered sealing solutions. We can manufacture gaskets to non-standard sizes, special profiles, incorporate layers or coatings, and create prototypes for testing. Our engineering team works directly with clients to design a gasket that meets unique pressure, temperature, and chemical exposure requirements.
