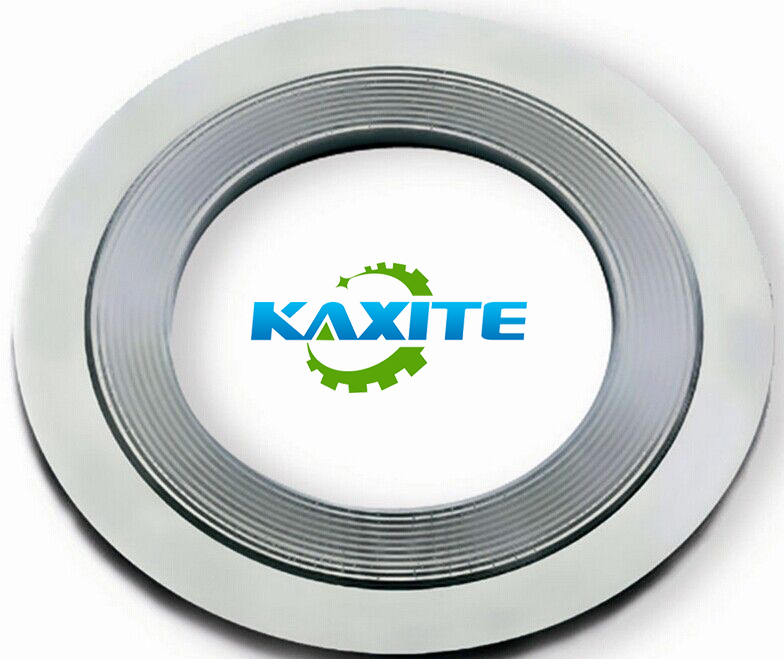

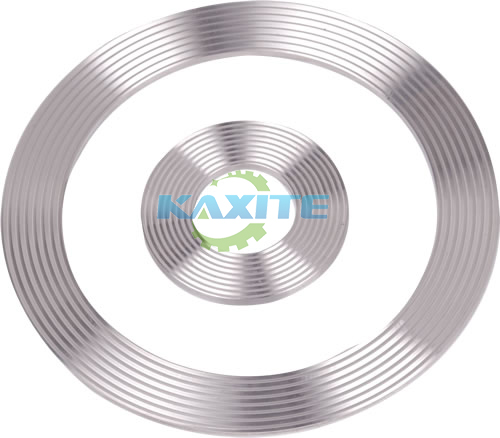

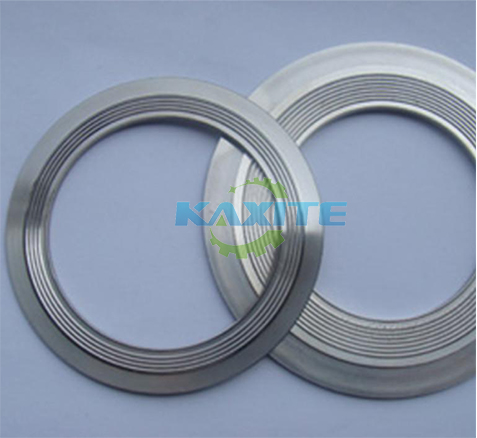

In demanding industrial applications where reliable sealing under high pressure and temperature is non-negotiable, Serrated Gaskets stand out as a critical component. Also known as ring-type joints (RTJ) or grooved gaskets, these are precision-engineered metallic sealing elements designed to create a formidable, leak-tight seal between flanged connections. Unlike softer, composite gaskets, serrated gaskets achieve sealing through the principle of controlled metal-to-metal contact. The concentric serrations, or grooves, machined onto both sealing faces bite into the softer flange material under high bolt load. This plastic deformation of the flange surfaces into the gasket's grooves creates multiple concentric barriers to fluid or gas passage, resulting in an exceptionally robust seal ideal for the most severe service conditions.
The unique design of serrated gaskets makes them indispensable across several high-stakes industries. Their primary role is to ensure safety, environmental protection, and operational integrity in systems containing volatile, toxic, or high-value media.
At Kaxite Sealing, we manufacture serrated gaskets to exacting international standards, ensuring compatibility and performance. Our gaskets are available in a wide range of materials, sizes, and pressure ratings to meet your specific application requirements.
| Standard | Common Types | Typical Size Range (NPS) | Pressure Class (ASME B16.5) |
|---|---|---|---|
| ASME B16.20 | Ring Type Joint (R, RX, BX) | 1/2" to 24" | Class 150 to 2500 |
| API 6A | Type R, BX (Wellhead Equipment) | 1-13/16" to 21-1/4" | API 5K to 20K |
| DIN 2696 | Type A (with groove), Type B (flat) | DN10 to DN600 | PN64 to PN400 |
The choice of material is paramount for corrosion resistance, temperature performance, and required hardness. Kaxite Sealing offers a comprehensive selection:
Every Kaxite Sealing serrated gasket is engineered with precision to guarantee optimal performance:
Q: What is the fundamental sealing mechanism of a serrated gasket?
A: The seal is created through controlled metal-to-metal interference. When the flanged connection is bolted together under high torque, the sharp peaks of the hardened gasket serrations plastically deform and embed into the relatively softer surface of the flange groove. This creates multiple concentric rings of intimate metal contact, forming a labyrinth seal that effectively blocks the path of internal fluid or gas. The high contact stress in these deformed zones is what provides the exceptional leak-tightness.
Q: Can a serrated gasket be reused after it has been compressed?
A: Generally, no. Serrated gaskets are designed for single-use. During initial installation, the serrations permanently deform the flange material. Removing the gasket breaks this formed seal, and the serrations are often flattened or damaged. Reusing a previously compressed serrated gasket will not re-establish the same level of intimate metal contact, significantly increasing the risk of leakage. Kaxite Sealing always recommends using a new gasket for every disassembly and reassembly cycle.
Q: How do I select the correct serrated gasket material for my application?
A: Material selection depends on three primary factors: the media being sealed, operating temperature/pressure, and flange material. First, the gasket material must resist corrosion from the process fluid. Second, it must retain sufficient strength and oxidation resistance at the operating temperature. Third, its hardness must be properly matched to the flange material (typically the gasket should be 50-70 Brinell points harder than the flange). Consulting with Kaxite Sealing's engineering team is recommended for critical or non-standard applications to ensure optimal and safe material selection.
Q: What is the difference between R, RX, and BX type ring gaskets?
A: These are standardized profiles defined by ASME B16.20 and API 6A. Type R is an oval or octagonal ring used in standard RTJ flanges. Type RX is a pressure-energized version of the R type; it has a more complex shape that allows internal pressure to further enhance the sealing force, making it suitable for higher pressures and temperatures. Type BX gaskets are used exclusively with API 6A BX flanges, typically in wellhead and tree applications; they have a different profile and are designed for sealing internal pressure only (not suitable for vacuum). Each type requires a specific mating flange groove.
Q: What are the proper installation and bolting procedures for a serrated gasket?
A: Correct installation is critical. The flange faces and gasket groove must be meticulously cleaned of old gasket material, dirt, and rust. The new gasket should be lightly lubricated with a suitable anti-seize compound (compatible with the service) to prevent galling. The gasket must sit squarely in the groove. Bolts should be tightened in a star-pattern sequence (cross-bolting) using a calibrated torque wrench to the specified torque value in multiple incremental passes (e.g., 30%, 60%, 100% of final torque). This ensures even compression and prevents gasket distortion. Always follow the flange manufacturer's or applicable standard's bolting procedure.
Q: Why should I choose Kaxite Sealing for my serrated gasket requirements?
A: Kaxite Sealing brings decades of metallurgical expertise and precision manufacturing to every gasket we produce. We don't just supply standard parts; we provide sealing solutions. Our quality management system ensures traceability from raw material to finished product. We offer technical support for material selection and application engineering. With a vast inventory of materials and the capability for custom manufacturing to meet non-standard or obsolete specifications, Kaxite Sealing is a trusted partner for industries where seal failure is not an option. Our commitment is to deliver gaskets that ensure safety, reliability, and operational efficiency.
