In the world of industrial sealing, precision and reliability are non-negotiable. Machines for spiral wound gaskets represent the cornerstone of manufacturing these critical sealing components. At Kaxite Sealing, we specialize in engineering advanced machinery that delivers unparalleled accuracy, repeatability, and efficiency for producing high-performance spiral wound gaskets used in demanding applications across oil & gas, petrochemical, power generation, and chemical processing industries.
Our commitment at Kaxite Sealing is to provide manufacturers with robust, technologically sophisticated equipment that transforms raw materials—typically a pre-formed V-shaped metal strip and a soft filler material—into consistent, high-integrity gaskets. The quality of the gasket is intrinsically linked to the precision of the machine that creates it. From controlling strip tension and filler density to ensuring perfect winding pitch and consistent outer diameter (OD)/inner diameter (ID), every parameter matters.

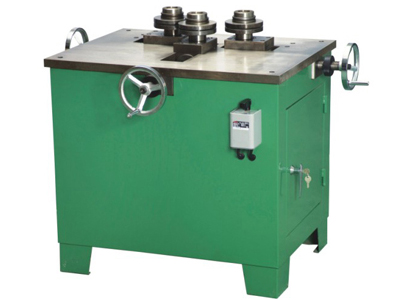

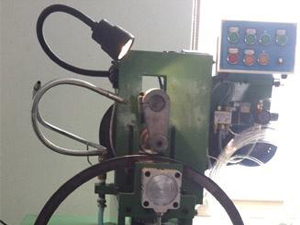

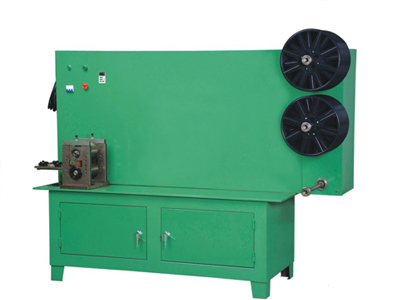

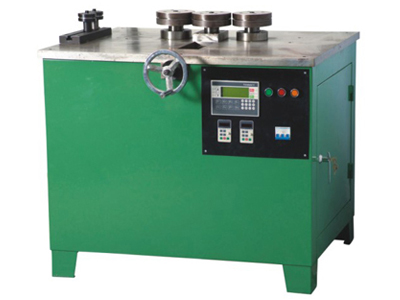

A modern spiral winding machine is a symphony of mechanical and control systems working in harmony. Key components include:
Understanding the specifications is crucial for selecting the right machine for your production needs. Below is a detailed table outlining the key parameters of our Kaxite Sealing standard series machines.
| Parameter Category | Specification Details | Importance for Gasket Quality |
|---|---|---|
| Gasket Dimension Range |
|
Defines the machine's capability to produce gaskets for flanges from small bore piping to large vessel connections. Precision in diameter control ensures perfect fit. |
| Metal Strip Specifications |
|
Dictates the final gasket's pressure rating and recovery properties. The machine must handle various thicknesses and materials without compromising winding tension. |
| Winding Speed & Control |
|
Higher, controlled speed increases throughput. Servo control ensures each wind is identical, guaranteeing consistent density and mechanical properties throughout the gasket. |
| Filler Material System |
|
Proper filler tension and alignment are critical for sealing performance. It prevents filler bunching or gaps, ensuring uniform compressibility and leak-tight sealing. |
| Pitch (Wind Spacing) Control |
|
Pitch affects gasket density, thickness, and spring constant. Precise control allows optimization for specific pressure/temperature service conditions. |
| Machine Construction & Power |
|
Robust construction minimizes vibration for consistent winding. Advanced controls simplify operation, reduce setup time, and enable documentation for quality assurance. |
Beyond specifications, it is the features that define operational excellence and return on investment.
Q: What is the primary advantage of using an automated machine over manual methods for making spiral wound gaskets?
A: Automated machines for spiral wound gaskets deliver unmatched consistency, precision, and traceability. Manual winding is highly variable, leading to fluctuations in gasket density, pitch, and dimensions, which directly impact sealing performance and can cause leaks. An automated machine from Kaxite Sealing precisely controls every parameter—tension, speed, pitch, and filler alignment—resulting in every gasket being identical to the last. This reduces scrap rates, ensures compliance with international standards like API 601 and ASME B16.20, and provides digital production records for quality audits.
Q: How does the machine ensure consistent density throughout the entire length of the gasket?
A: Consistent density is achieved through a combination of precise servo-motor control and closed-loop tension management. The winding speed is constant and programmable. Crucially, the tension on both the metal strip and the filler material is actively monitored and maintained by electronically controlled brakes or dancers. As the material pay-off coils diminish in size, the system automatically adjusts to prevent tension increase, which would otherwise create a tighter, denser wind. This ensures the gasket's compressibility and recovery are uniform from start to finish.
Q: Can one machine handle different metal and filler material types?
A: Yes, a high-quality machine is designed for versatility. Kaxite Sealing machines are built to accommodate a wide range of metallic strip materials (stainless steel 304/316, Inconel, Titanium, etc.) and non-metallic filler materials (flexible graphite, PTFE, mica). The key is the machine's adjustable tension range and the ability to handle different strip thicknesses and widths. The HMI allows operators to create and save specific "recipes" for each material combination, storing optimal tension, speed, and pitch settings to ensure perfect results regardless of the material changeover.
Q: What is "pitch" in spiral wound gaskets, and why is its control so important?
A: Pitch refers to the distance from the center of one metal wind to the center of the next adjacent wind. It is a critical design parameter. A tighter pitch (smaller distance) creates a denser, thicker, and generally higher-performance gasket with greater spring-back, suitable for higher-pressure applications. A wider pitch creates a less dense gasket. Precise pitch control, a hallmark of Kaxite machines, ensures the manufactured gasket matches its design specifications exactly. Inconsistent pitch leads to weak spots and variable compression behavior, which are prime causes of flange leakage.
Q: How important is the control system and software in these machines?
A: The control system is arguably as important as the mechanical components. It transforms a complex mechanical process into a simple, repeatable operation. Kaxite's PLC-based system with graphical HMI allows operators to input gasket dimensions; the software automatically calculates the required number of winds. It controls all axes of motion, monitors tensions, logs production data (date, time, operator, recipe used), and provides diagnostic alerts. Advanced software enables features like automatic pitch correction and in-process quality monitoring, which are essential for modern, efficient, and quality-focused manufacturing.
Q: What should I consider when choosing a supplier for spiral winding machinery?
A: Look for a supplier with proven industry experience, a strong track record, and comprehensive support. Key considerations include: 1) Technical Expertise: The supplier should deeply understand gasket manufacturing, not just machinery. 2) Machine Flexibility & Range: Can their machines produce the full size and material range you require? 3) Build Quality & Durability: Inspect the construction, components used (e.g., brand of PLC, servos). 4) After-Sales Support: Availability of installation, training, spare parts, and technical service is critical for minimizing downtime. Kaxite Sealing excels in all these areas, providing complete solutions backed by decades of sealing industry knowledge.
Selecting the appropriate machine for spiral wound gaskets is a strategic decision that impacts product quality, production capacity, and operational cost. Whether you are a large gasket manufacturer producing thousands of gaskets per week or a plant maintenance facility making custom replacements in-house, the principles of precision, control, and reliability remain the same. The investment in advanced machinery from a trusted partner like Kaxite Sealing pays dividends through reduced material waste, lower labor costs per unit, flawless quality that enhances your brand reputation, and the agility to respond to custom orders quickly and accurately. By integrating smart features like recipe management and automated quality checks, these machines are not just tools but central pillars of a modern, data-driven, and efficient manufacturing operation.
