Lens Ring Joint Gasket
Good quality Lens Ring Joint Gasket made by Chinese lead company Kaxite. Lens Ring Joint Gasket you can get with best price from us.
-
Double Jacket Gasket
Good quality Double Jacket Gasket made by Chinese lead company Kaxite. Double Jacket Gasket you can get with best price from us.
-
Stamping Jacket Gasket
Good quality Stamping Jacket Gasket made by Chinese lead company Kaxite. Stamping Jacket Gasket you can get with best price from us.
-
Corrugated Gaskets
Good quality Corrugated Gaskets made by Chinese lead company Kaxite. Corrugated Gaskets you can get with best price from us.
-
PTFE Envelope Gasket
Good quality PTFE Envelope Gasket made by Chinese lead company Kaxite. PTFE Envelope Gasket you can get with best price from us.

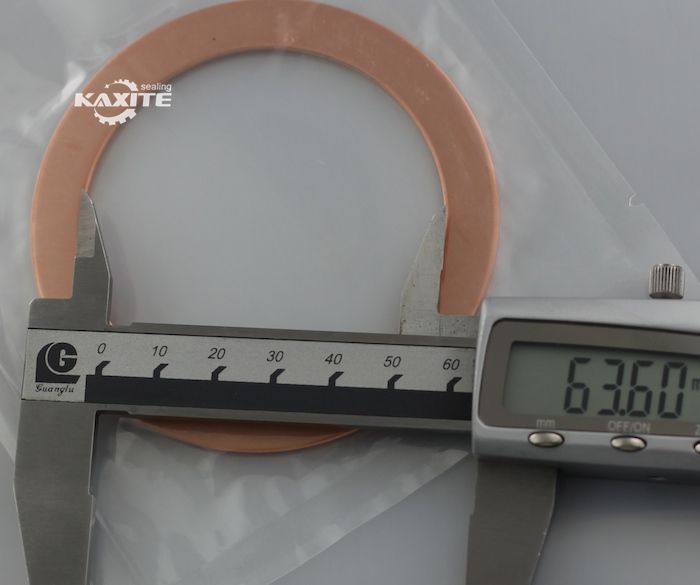

Oxygen Free Copper Gaskets
To make a leak tight UHV seal between two conflat flanges, a gasket is required. OFHC (oxygen free high conductivity) copper is normally used as this sealing material as it is very clean, can easily be formed to shape, has a wide temperature range, and has a low outgassing rate.
To make a leak tight UHV seal between two conflat flanges, a gasket is required. OFHC (oxygen free high conductivity) copper is normally used as this sealing material as it is very clean, can easily be formed to shape, has a wide temperature range, and has a low outgassing rate.
| Type | A | B | Oxygen-free Copper | |
| Order no. | weight /kg | |||
| 16 | 21.3 | 16.2 | 7355 | 0.01 |
| 25 | 35 | 25.6 | 7356 | 0.01 |
| 35 | 48.1 | 36.8 | 7357 | 0.02 |
| 50 | 61.6 | 52 | 7358 | 0.02 |
| 63 | 82.4 | 63.6 | 7359 | 0.05 |
| 80 | 99 | 82 | 7360 | 0.07 |
| 100 | 120.5 | 102 | 7361 | 0.07 |
| 150 | 171.3 | 152.5 | 7362 | 0.1 |
| 200 | 222.1 | 203 | 7363 | 0.14 |
| 250 | 273.1 | 254 | 7364 | 0.2 |
Standard size: CF16, CF25, CF35,CF50, CF63, CF80, CF100, CF150, CF200, CF250.
We also manufacture the non-standard copper gasket seals upon your requirement.
