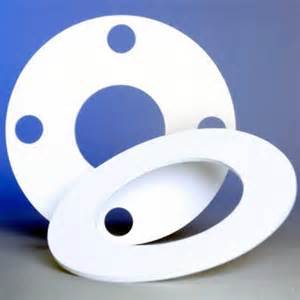

Pure PTFE Gasket
Outstanding chemical resistance. Non-corrosive, non-wetting, non-contaminating and odourless. Excellent electrical and thermal insulation when in virgin PTFE form.
Description
Pure PTFE Gasket is made by cutting PTFE stick, pipe and sheet into flat shape, V shape gasket and valve annulus. It has 100% PTFE structure. It can be bear the most bitter chemical medium, and has good anti-creeping performance.
Our company was ISO9001 certificated, we will serve you with the best quality and good price. We can offer most kinds of PTFE gasket with good quality and competitive price.PTFE gasket produced by CNC machine or molded
Advantages:
• Strong corrosion proof and clean
• High degree of chemical stability
• High temperature proof
• Radiaton resistance
• Aging resistance
• Low permeability
• Oil resistance
Application
• pipes in chemical industry
• food-producing industry
• medicine industry
Main properties
Property
Unit
Result
Density
kg/m3
2200 ~ 2300
Tensile strength
MPa
15.0
Ultimate elongation (min)
%
150
Working Temp
oC
- 200 ~ +260
Melting point
oC
330
Produce Max. Temp
oC
390
Compressive strength 1% deformation
N/mm2
400-450
Elongation at break
%
210-400
Hardness
(shoreD)
50-60
Water absorption
%
0.01
Dielectric strength
KV/mm
55
• Flange joints of various equipments
(short-time air thickness 0,5 mm)
