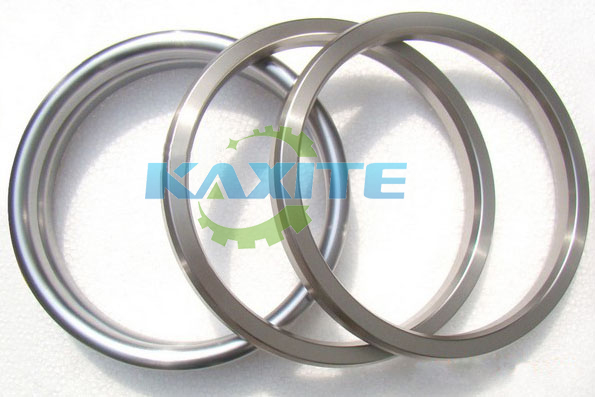

Octagonal Ring Joint Gasket

> Ring Joint Gaskets are for oilfield and process industry duties. > Octagonal shape gasket is belong to API 6A R series > These gaskets are used in pressures up to 10,000 PSI, more than Oval ring joint. > The oval type is the only gasket that will fit a bottom radiused groove. > Gaskets and not re-used after torque.


Send Inquiry


Description

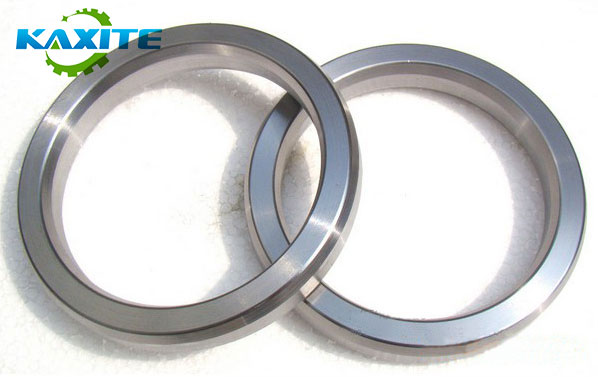

Octagonal metal ring gasket

installed inside a ladder type ring groove on the surface of the flange, when screw down the connecting bolt, the axial compression and up and down the ladder type slot 1, produce plastic deformation, forming a ring seal belt, establish the initial seal.After booster, under the action of medium pressure, make the ring gasket radial expansion.Gasket with trapezoidal groove cant post more tightly, self-tightening effect.Medium pressure increases, however, also can make the flange and the connecting bolt deformation, caused by a relative separation between the sealing surface, gasket seal than relative decline, thus, ring gasket can be thought of as a half since the tight closure.



Octagonal metal ring gasket

It mainly match with flange groove is surface contact, compared with the oval ring gasket though with flange groove or not easily, but it can be used again, and because of the cross section is made up of straight line easy processing.At the same time choose octagonal metal ring gasket material should be lower than the flange surface hardness 15 ~ 20 hb



Note

When octagonal type is chosen, the material hardness of the pad should be 15~20HB lower than that of the flange face. It is recommended the

pad is not recycled.



Applicable standards

ANSI B16.5-1973 、 JPI-75-15-70 、 GB 699 、 GB1220 、 JB755 、 HG20633-97



Octa ring gasket drawings





Main materials :

Material

Maximum hardness BRINELL

Temperature( ℃ )

Abbreviations
marker

Brucellosis

Rockwell

Soft Iron

90

56

-60 500

D

Low Carbon Steel

120

68

-40~540

S

304SS

160

83

-250 540

304

304LSS

160

83

-250 540

304L

316SS

160

83

-200 815

316

316LSS

160

83

-200 815

316

321SS

160

83

-200 870

321

347SS

160

83

-200 870

347

410SS

170

86

-40 850

410

5Cr-0.5Mo

130


-29 650


Copper

80


-100 315


Aluminum

35


-200 425


Inconel 600

150


-100 1095


Incoloy 825

150


-100 1095


Monel 400

150


-100 760


Titanium

215


-200 540


Nickel 200 -

110


200 760


Hastelloy B2

230


-100 1095


Hastelloy C276

210


-100 1095
