Products

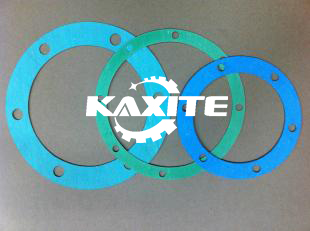

Non-asbestos Rubber Gasket

Synthetic Fiber gasket cut from Synthetic Fiber rubber sheet. Suitable for use as an oil-resistant jointing medium for heat installations and engine sealing


Send Inquiry


Description

Non-asbestos Series MPTFE Series

Kaxite? line offers a variety of elastomers to excel in a wide range of services.

Modified PTFE line offers good resistance to cold flow (creep), high pressure service, and good chemical compatibility.

KXT? Style 2200

Garlock Blue-Gard 3000
KXT 2000 Datasheet PDF

Style 2000

Aramid fibers with a nitrile binder.

Benefits

Excellent sealability

? Unique blend of aramid fibers, fillers and a nitrile rubber binder provides improved torque retention and drastically lowered emissions levels

Cost savings

? Cuts operational costs through reduced:- Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption

Media

? Water

? Aliphatic hydrocarbons

? Oils

? Gasoline

KXT 2000 Specifications
Min. Temperature: -100oF
Max Temperature: 400oF
Min. Pressure: 1000 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

KXT? Style 2200

Garlock Blue-Gard 3200
KXT 2200 Datasheet PDF

Style 2200

Aramid fibers with a nitrile binder.

Benefits

Excellent sealability

? Unique blend of aramid fibers, fillers and a nitrile rubber binder provides improved torque retention and drastically lowered emissions levels

Cost savings

? Cuts operational costs through reduced:- Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption

Media

? Water

? Saturated steam

? Inert gases (meets MIL-G-24696B)

KXT 2200 Specifications
Min. Temperature: -100oF
Max Temperature: 400oF
Min. Pressure: 1200 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

KXT? Style 2300

Garlock Blue-Gard 3300
KXT 2300 Datasheet PDF

Style 2300

Aramid fibers with a  neoprene binder.

Benefits

Excellent sealability

? Unique blend of aramid fibers, fillers and a SBR rubber binder provides improved torque retention and drastically lowered emissions levels

Cost savings

? Cuts operational costs through reduced: - Waste- Waste- Maintenance- Stocked inventory- Fluid loss- Energy consumption

Media

? Water

? Saturated steam

? Refrigerants

? Oils

? Fuels

KXT 2300 Specifications
Min. Temperature: -100oF
Max Temperature: 400oF
Min. Pressure: 1200 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

MPTFE? Style 2504

Garlock Gylon 3504
MPTFE 2504 Datasheet PDF

Style 2504 Blue

PTFE with glass microspheres.

Benefits

Tighter Seal

? Improved performance over conventional PTFE

? Reduced product loss and emissions

Reduced creep relaxation

? Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets

? Excellent bolt torque retention

Chemical resistance

? Withstands a wide range of chemicals for extended service life in a wide variety of applications

Cost savings

? Cuts operational costs through reduced:- Fluid loss- Energy consumption- Maintenance costs- Inventory costs- Waste

Largest sheet sizes

? Offers some of the largest sheet sizes in the industry

? Improved material utilization reduces waste

Branding and color coding

? Easy identification of superior MPTFE? products

? Reduces misapplication and use of unauthorized, inferior substitutes

Media

? Moderate concentrations of acids and some caustics

? Hydrocarbons

? Solvents

? Water

? Refrigerants

? Cryogenics, hydrogen peroxide

MPTFE 2504 Specifications
Min. Temperature: -450oF
Max Temperature: 500oF
Min. Pressure: 800 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

MPTFE? Style 2510

Garlock Glyon 3510
MPTFE 2510 Datasheet PDF

Style 2510 Off-White

PTFE with barium sulfate filler.

Benefits

Tighter Seal

? Improved performance over conventional PTFE

? Reduced product loss and emissions

Reduced creep relaxation

? Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets

? Excellent bolt torque retention

Chemical resistance

? Withstands a wide range of chemicals for extended service life in a wide variety of applications

Cost savings

? Cuts operational costs through reduced:- Fluid loss- Energy consumption- Maintenance costs- Inventory costs- Waste

Largest sheet sizes

? Offers some of the largest sheet sizes in the industry

? Improved material utilization reduces waste

Branding and color coding

? Easy identification of superior MPTFE? products

? Reduces misapplication and use of unauthorized, inferior substitutes

Media

? Strong caustics

? Moderate acids

? Chlorine

? Gases

? Water

? Steam

? Hydrocarbons

? Cryogenics and aluminum fluoride

MPTFE 2510 Specifications
Min. Temperature: -450oF
Max Temperature: 500oF
Min. Pressure: 1200 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)

MPTFE? Style 2545

Garlock Gylon 3545
MPTFE  2545 Datasheet PDF

Style 2545

PTFE Gasketing with aluminosilicate microspheres

Benefits

Tighter Seal

? Highly compressible PTFE outer layers seal under low bolt load-suitable for many non-metallic flanges

? Compressible layers conform to surface irregularities, especially on warped, pitted or scratched flanges

? Rigid PTFE core reduces cold flow and creep normally associated with conventional PTFE gaskets

Excellent chemical compatibility

? Pure PTFE withstands a wide range of chemicals

Easy to cut and install

? Soft PTFE can be cut easily from larger sheets, reducing inventory costs and expensive downtime

? Rigid PTFE core facilitates installation, especially on large diameter flanges and hard-to-reach areas

Media

? Strong caustics

? Strong caustics

? Strong acids

? Hydrocarbons

? Chlorine

? Cryogenics

? Glasslined equipment

? Plastic piping

? Low bolt load applications

MPTFE 2545 Specifications
Min. Temperature: -450oF
Max Temperature: 500oF
Min. Pressure: 1200 (PSI)
Maximum PxT 1/16: 350,000 (oF x PSIG)
Maximum PxT 1/8: 250,000 (oF x PSIG)
